Analog Devices Inc. EVAL-ADPD7000Z Evaluation Board

Analog Devices Inc. EVAL-ADPD7000Z Evaluation Board evaluates the ADPD7000 fully Integrated analog front end (AFE). The Analog Devices Inc. EVAL-ADPD7000Z kit includes both software and hardware. The EVAL-ADPD7000Z can evaluate the AFE feature and verify the system design based on the AFE. According to the application’s requirements, a cable or BLUETOOTH® connection can establish communication between the PC and the EVAL-ADPD7000Z demonstration kit.

Features

The board supports the ADPD7000 population
Six separately driven LEDs are included: three green LEDs around the center and three packaged LEDs, each of which includes one infrared LED and one red LED
Four channels of photodiode input: two channels with a single PD and two channels with a double PD

Works with the VSM Client software, allowing the following:
- Time domain graphing and logging
- Selection of supported functions, including PPG, BIA, EDA, and ECG
- Real-time data display with various combinations of the supported functions

Kit Contents

EVAL-ADPD7000Z evaluation board
EVAL-VSMUCZ microcontroller board
Soft cable to connect the EVAL-ADPD7000Z and EVALVSMUCZ

Analog Devices Inc. EVAL-ADPD7000Z Evaluation Board

Features

Kit Contents

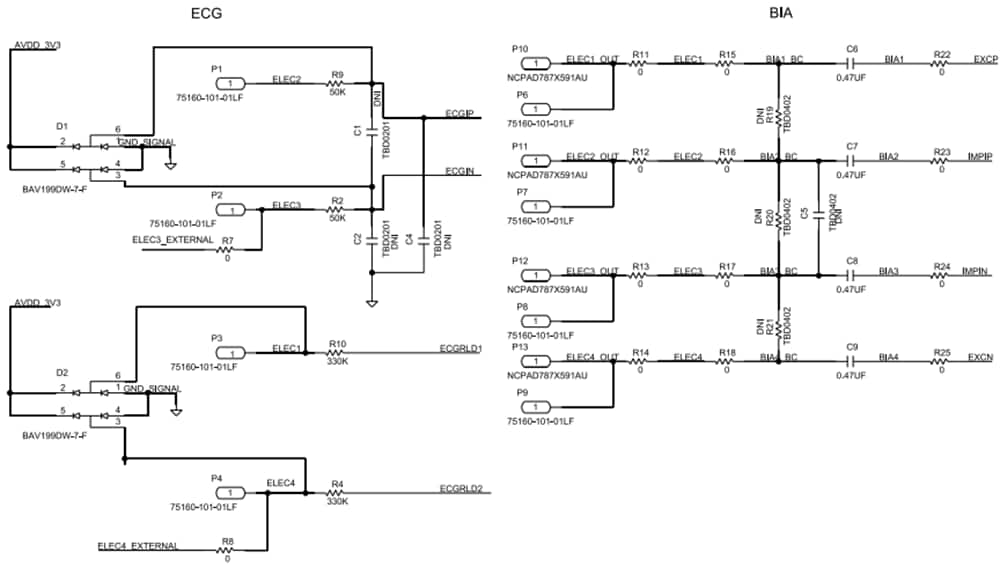

SCHEMATICS
