Analog Devices Inc. EVAL-ADMX2001EBZ LCR Meter Demo/Evaluation Board

Analog Devices Inc. EVAL-ADMX2001EBZ LCR Meter Demo/Evaluation Board is an easy-to-use evaluation and development board that enables convenient access to the functionality of the ADMX2001B Precision Impedance Analyzer Measurement Module. The onboard BNC connectors can interface with common LCR meter test probes and fixtures. The UART interface can be used with USB-to-UART cables to interface to a host PC. The Analog Devices Inc. EVAL-ADMX2001EBZ has trigger and clock synchronization signals available through SMA connectors that simplify the connection to standard test equipment. Arduino-style headers allow users to develop embedded code with boards like the SDP-K1. The power jack accepts various input voltages from AC/DC power adapters supplying +5V to +12V.

Kit Contents

EVAL-ADMX2001EBZ board
UART to USB cable (TTL-232R-RPI)

Universal power adapter with 12VDC output
LCR meter test clips

Required Equipment

ADMX2001B High-Performance Precision Impedance Analyzer Measurement Module
Optional equipment
- LCR meter accessories
  - Keysight impedance measurement accessories
  - B+K Precision TL89S1 SMD test fixture
  - B+K Precision TL89F1 4-terminal test fixture for leaded components
- Calibration standards and accessories
  - IET Labs (former General Radio products)
  - Keysight 42090A open termination
  - Keysight 42091A short termination
  - Keysight 42030A four-terminal pair standard resistor set
  - Keysight 16380A standard air capacitor set (1pF to 1000pF)
  - Keysight 16380C capacitance standard set (0.01uF to 10uF)
- LCR meter for verification and calibration transfer
  - Keysight E4980A precision LCR meter

Analog Devices Inc. EVAL-ADMX2001EBZ LCR Meter Demo/Evaluation Board

Kit Contents

Required Equipment

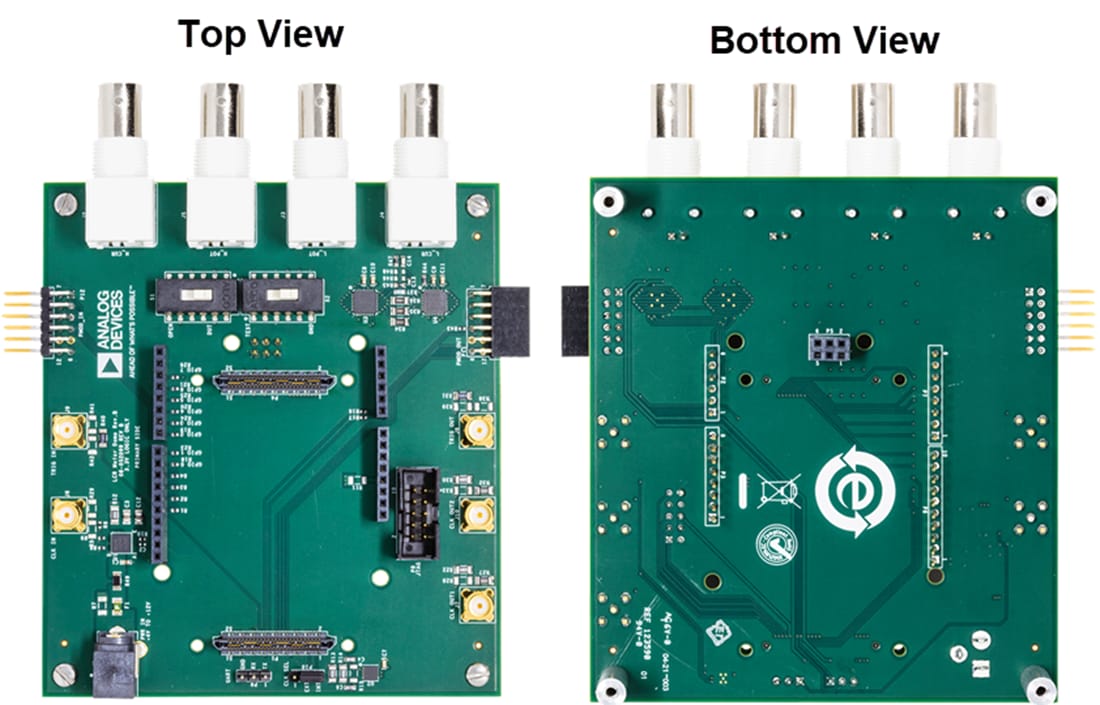

Board Layout
