Analog Devices Inc. EVAL-ADG6412EBZ Evaluation Board

Analog Devices Inc. EVAL-ADG6412EBZ Evaluation Board is engineered for the ADG6412. The ADG6412 integrates four independent single-pole/single-throw (SPST) switches. The ADI ADG6412 is located in the center of the evaluation board, and wire screw terminals are equipped to connect to each of the source and drain pins. Three screw terminals power the device, and a fourth terminal furnishes users with a defined digital logic supply voltage if needed. Alternatively, the ADP7142 on the board can supply the digital logic supply voltage.

Features

Low R_ON of 0.5Ω
High continuous current of up to 847mA
Flat R_ON across the signal range, 0.003Ω
Improved balance between on resistance and on capacitance
Low R_ON (0.5Ω) and C_ON (33pF)
1.8V Logic compatibility

16-lead, 4mm x 4mm LFCSP package
Pin-to-pin compatible with the ADG5412 and ADG5412F
Fully specified at ±20V and +36V
Operational with asymmetric power supplies
V_SS to V_DD –2V analog signal range

Required Equipment

DC voltage source
±22V for dual-supply
39.6V for single-supply
Optional digital logic-supply

Analog signal source
Method to measure voltage, such as a digital multimeter (DMM) or oscilloscope

Analog Devices Inc. EVAL-ADG6412EBZ Evaluation Board

Features

Required Equipment

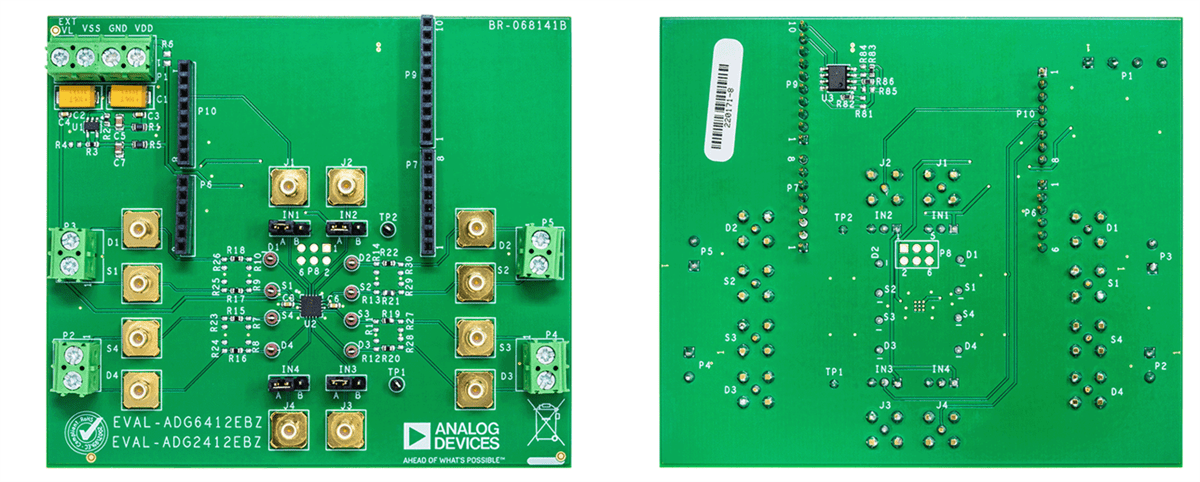

PCB Layout
