Analog Devices Inc. EVAL-ADG2412EBZ Evaluation Board

Analog Devices Inc. EVAL-ADG2412EBZ Evaluation Board allows users to evaluate the ADG2412. The ADG2412 integrates four independent single-pole/single-throw (SPST) switches. The ADG2412 is positioned in the center of the evaluation board, and wire screw terminals are included to connect to each of the source and drain pins. Three screw terminals power the device, and a fourth terminal supplies users with a defined digital logic supply voltage if needed. Alternatively, the ADP7142 on the board can provide the digital logic supply voltage.

Features

Low R_ON of 0.5Ω
High continuous current of up to 847mA
Flat R_ON across the signal range, 0.003Ω
Improved balance between on resistance and on capacitance
Low R_ON (0.5Ω) and C_ON (33pF)
1.8V Logic compatibility

16-lead, 4mm x 4mm LFCSPe package
Pin-to-pin compatible with the ADG1412
Fully specified at ±15V, +12V, ±5V and +5V/–12V
Operational with asymmetric power supplies
V_SS to V_DD –2V analog signal range

Required Equipment

DC voltage source
- ±15V ±10%, and/or ±5V ±10%, for dual-supply
- +12V ±10% for single-supply
Optional digital logic-supply

Analog signal source
Method to measure voltage, such as a digital multimeter (DMM) or oscilloscope

Analog Devices Inc. EVAL-ADG2412EBZ Evaluation Board

Features

Required Equipment

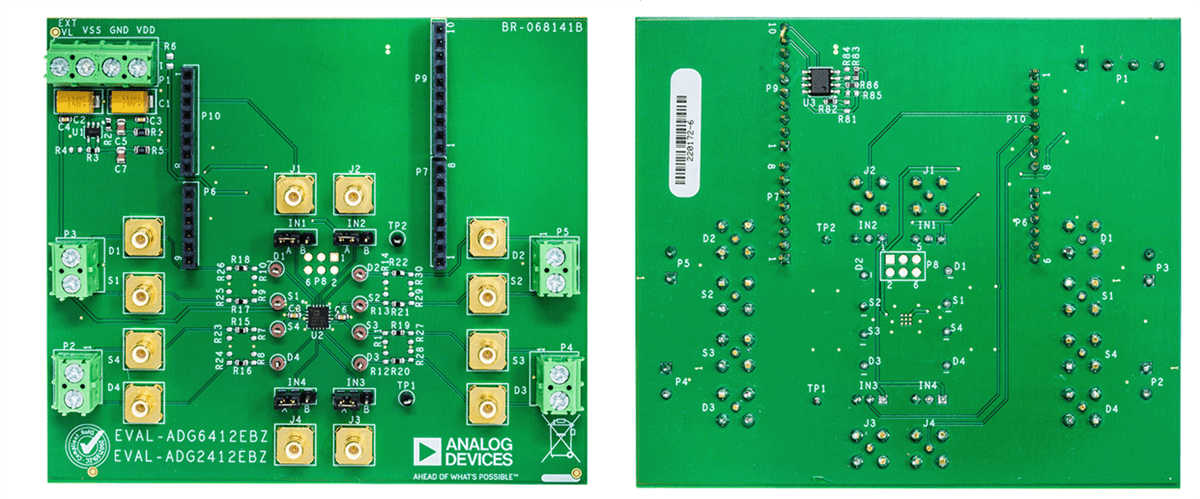

PCB Layout
