Analog Devices Inc. EVAL-ADG1412LEBZ Evaluation Board

Analog Devices Inc. EVAL-ADG1412LEBZ Evaluation Board is engineered for the ADG1412L quad SPST switch. The ADG1412L is a monolithic Complementary Metal-Oxide Semiconductor (CMOS) device containing four independently selectable switches designed using the iCMOS® process. The four SPST switches are turned on with logic one and an external VL supply, which delivers flexibility for lower logic control. This ADG1412L switch supplies a maximum of 2.6Ω on-resistance over temperature and guaranteed switch-off when digital inputs are floating. The on-resistance profile is flat over the full analog input range while switching signals, ensuring excellent linearity and low distortion (1.5Ω typical). The ADG1412L is both 1.2 V and 1.8 V JEDEC standard compliant.

Features

Single inline headers provide flexibility for the field programmable gate array or microcontroller 1.2 V or 1.8V logic-input signals
Surface-mount device pin resistor or capacitor sockets available for the addition of passive components
SMB connector sockets provide flexibility for the input and output signals

Required Equipment

DC voltage source (V_DD/V_SS)
- ±15V for dual supply
Optional digital logic supply (V_L)
- 1.1V to 1.3V for 1.2V logic
- 1.65V to 1.95V for 1.8V logic

Analog signal source
Method to measure voltage, such as a digital multimeter

Analog Devices Inc. EVAL-ADG1412LEBZ Evaluation Board

Features

Required Equipment

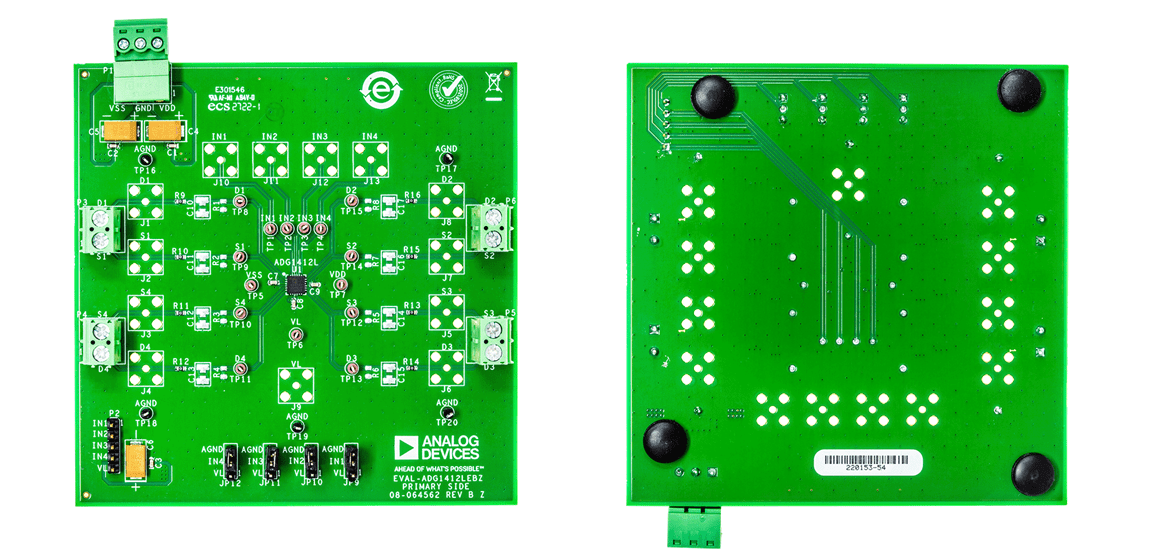

PCB Layout
