Analog Devices Inc. EVAL-ADBMS6830BMSW Evaluation Board

Analog Devices Inc. EVAL-ADBMS6830BMSW Evaluation Board is designed for the ADBMS6830B 16-channel battery stack monitor. The Analog Devices Inc. EVAL-ADBMS6830BMSW allows the connection of multiple boards via a single twisted pair wire interface (isoSPI) to monitor a series of cells in a stack. This board offers full channel monitoring for all cells in the battery pack, whether in the supply line or the V+ to V- line. Additionally, it features reversible isoSPI for measurement functions and redundant communication. The PCB, components, and DuraClik connectors are optimized to minimize EMI susceptibility and emissions.

Features

Full-featured evaluation board for the ADBMS6830B
Demonstrates high-performance measurements of the ADBMS6830B
Includes 2x isoSPI ports for reversible isoSPI support
Daisy-chain capability
Accessible cell and GPIO connections via optional connectors

Accessible isoSPI connections via simple DuraClik connectors
Compatible with EVAL-ADBMS6822 dual master isoSPI board
With PC-based software for control and data analysis using Broad Market Browser BMS GUI
Basic embedded code functions for cell monitoring and diagnostics

Applications

Mobile robot systems
E-scooters/E-bikes/light electric vehicles
Agricultural gateway hubs
Metering technology

Power tools
Portable energy storage systems
Industrial equipment battery monitoring

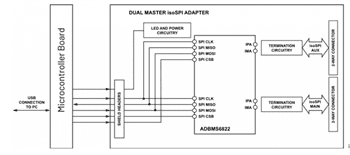

System Architecture

Block Diagram - Analog Devices Inc. EVAL-ADBMS6830BMSW Evaluation Board
