Analog Devices Inc. EVAL-ADA4870EBZ Evaluation Board

Analog Devices Inc. EVAL-ADA4870EBZ Evaluation Board provides a platform for quick and easy evaluation of the ADA4870. The ADA4870 is a unity-gain stable, high-speed current feedback amplifier capable of delivering 1A of output current and 2500V/μs slew rate from a 40V supply. Manufactured using the Analog Devices, Inc. proprietary high voltage extra fast complementary bipolar (XFCB) process, the innovative architecture of the ADA4870 enables high output power, high-speed signal processing solutions in applications that require driving a low impedance load.

Features

  • Enables easy evaluation of the ADA4870
  • Single-supply or dual-supply operation
  • Robust thermal management

Applications

  • Organic light-emitting diode (OLED) panel driver
  • Active matrix organic light-emitting diode (AMOLED) panel driver
  • Base transceiver station (BTS) envelope tracking
  • Power field effect transistor (FET) driver
  • Ultrasound
  • Piezoelectric driver
  • PIN diode driver
  • Waveform generation
  • Automatic test equipment (ATE)
  • Charge-coupled device (CCD) panel driver

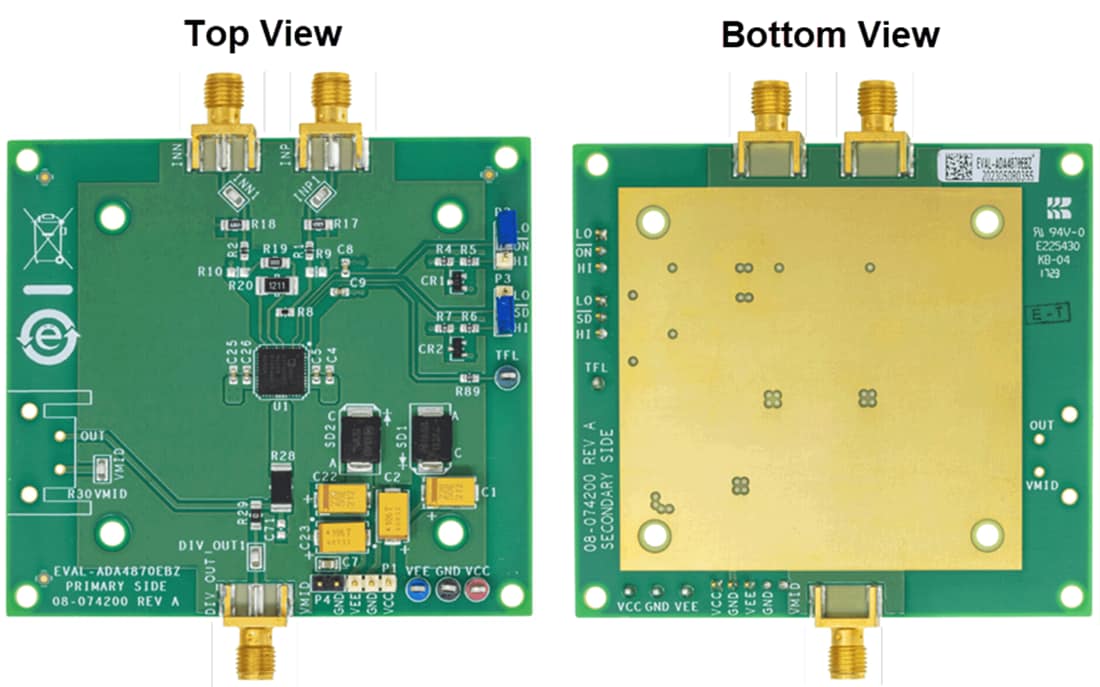

Board Layout

Mechanical Drawing - Analog Devices Inc. EVAL-ADA4870EBZ Evaluation Board
