Analog Devices Inc. EVAL-AD4858FMCZ DAS Evaluation Board

Analog Devices Inc. EVAL-AD4858FMCZ DAS Evaluation Board is designed to demonstrate the performance of the AD4858 and provide access to many included configuration options. These options are accessed via an easy-to-use ACE plug-in graphical interface. The AD4858 is a fully buffered, 8-channel simultaneous sampling, 20-bit, 1 MSPS data acquisition system (DAS) with differential, wide common mode range inputs.

The Analog Devices Inc. EVAL-AD4858FMCZ onboard components include the LTC6655 (a high precision, low drift, 4.096 V voltage reference), the LT1761 (a low noise, 1.8V, 2.5V, and 5V LDOs), and the LT8330 (a low quiescent current (I_Q) boost converter).

Features

Full-featured evaluation board for the AD4858
Eight input channels are available through SMA connectors
Onboard reference circuit and power supplies
Standalone capability through FMC connector and/or test points

PC software for control and data analysis of the time and frequency domain
ZedBoard-compatible
Compatible with other FMC controller boards

Kit Contents

EVAL-AD4858FMCZ evaluation board
Micro-SD memory card (with adapter) containing system board boot software and Linux OS

Required Equipment

PC running Windows® 10 operating system or higher
Digilent ZedBoard with 12V wall adapter power supply
Precision signal source

SMA cables (inputs to evaluation board)
USB cable

Analog Devices Inc. EVAL-AD4858FMCZ DAS Evaluation Board

Features

Kit Contents

Required Equipment

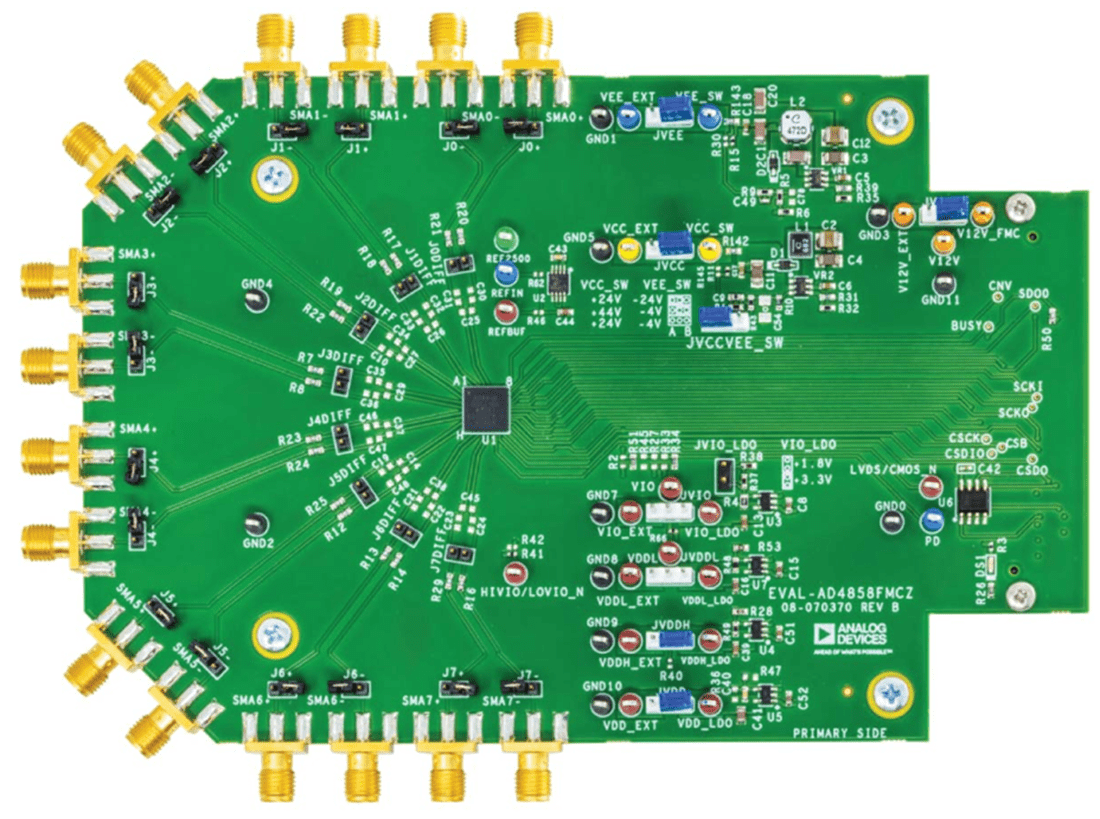

Board Layout
