Analog Devices Inc. EV1HMC836xLP6G Evaluation Boards

Analog Devices Inc. EV1HMC8362LP6G/EV1HMC8364LP6G Evaluation Boards are configured to evaluate the performance of the HMC8362 and HMC8364 low noise quadband voltage-controlled oscillators (VCOs). The HMC8362/HMC8364 Low Noise Quadband Voltage Controlled Oscillators are designed to offer wideband capabilities without compromising phase noise performance.

The ADI EV1HMC8362LP6G/EV1HMC8364LP6G Evaluation Boards include the HMC8362 or HMC8364 VCO, an LT3042 ultralow noise voltage regulator, a jumper, an ADG1604 4:1 multiplexer, and subminiature Version A (SMA) and 2.92mm K connectors.

Features

Self contained board, including HMC8362 or HMC8364 low noise quadband VCO ADG1604 4:1 multiplexer, filtering options, and LT3042 voltage regulator and header connectivity to allow use of Arduino Uno or Linduino microcontroller
Externally powered by a single 6V supply

Required Equipment

Power supply (6V)
Power supply (low noise, variable 0V to 13.5V)

50Ω terminations
Signal source analyzer

Analog Devices Inc. EV1HMC836xLP6G Evaluation Boards

Features

Required Equipment

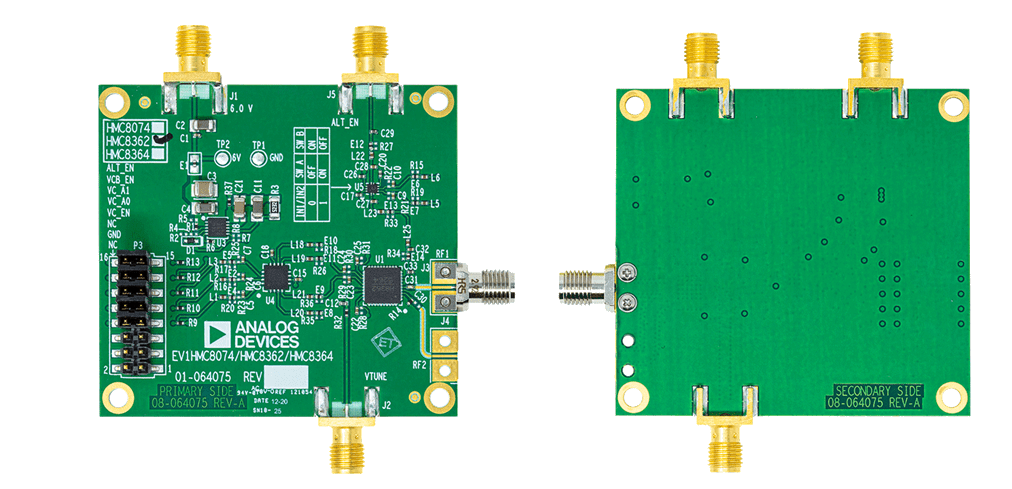

Board Layout
