Analog Devices Inc. EV-RPG2 Evaluation Kits

Analog Devices Inc. EV-RPG2 Evaluation Kits evaluate the communication path from the host processor to the Programmable Logic controller (PLC) or PC-based tool. The Analog Devices Inc. EV-RPG2 evaluation kits can verify the communication path between the host processor and a PLC before integrating the network interface into the end field device. This complete kit saves design time and debugging for less time to market.

Features

Small-form factor
Low-power consumption
Ease of use simplifies industrial network designs

Multiprotocol capabilities support standard industrial protocols
Expansion capabilities beyond a single protocol

Applications

Industrial automation
Process control systems
Robotics
Factory automation

Internet of Things (IoT) devices
Smart grid systems
Building automation

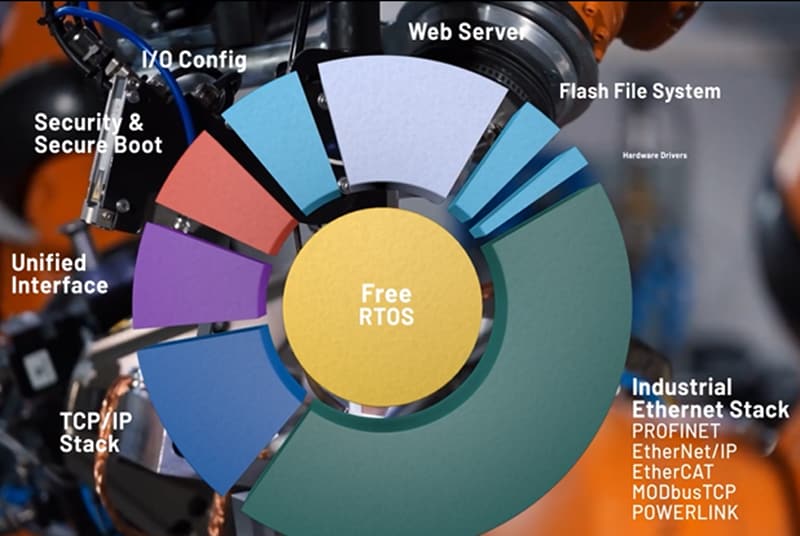

Videos

Analog Devices Inc. EV-RPG2 Evaluation Kits

Kits Available

Pretested software is included with the hardware for each protocol standard for faster development time.

EV-RPG2-ECZ EtherCAT
EV-RPG2-ENZ EtherNet/IP
EV-RPG2-PNZ Profinet
EV-RPG2-MBZ Modbus

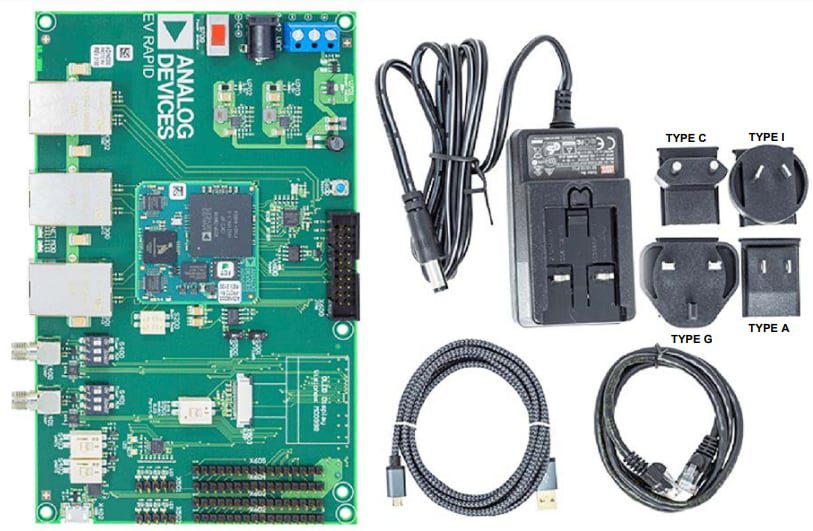

Kit Contents

Baseboard
- RapID Generation 2 module installed and preloaded with protocol-specific software
Wall mount AC adapter, 90V_AC to 264V_AC to 12V_DC, 12W, 1A
Four power supply plug adapters available (A, C, G, and I types)

1 USB A male to USB micro B male cable
Ethernet cable
Hardware needed
- PC with Windows® 10 operating system
