Analog Devices Inc. DC3158A Evaluation Board

Analog Devices Inc. DC3158A Evaluation Board is designed to evaluate the performance of the LT3041 Low-Dropout (LDO) linear regulators. This evaluation board operates over a 3.8V to 20V  input voltage range and provides 1A maximum output current. The DC3158A evaluation board features 1A maximum output current, resistor programmed power-good, and BNC connectors for noise and PSRR measurement.

Features

  • 3.8V to 20V input voltage range
  • Resistor-programmed 3.32V output voltage
  • 1A maximum output current
  • BNC connectors for noise and PSRR measurement
  • Resistor programmed power-good
  • Resistor-programmable current limit, current monitoring, and UVLO
  • VIOC to manage power dissipation and PSRR
  • Thermally enhanced, 14-lead, 3mm x 4mm, DFN package

Schematic Diagram

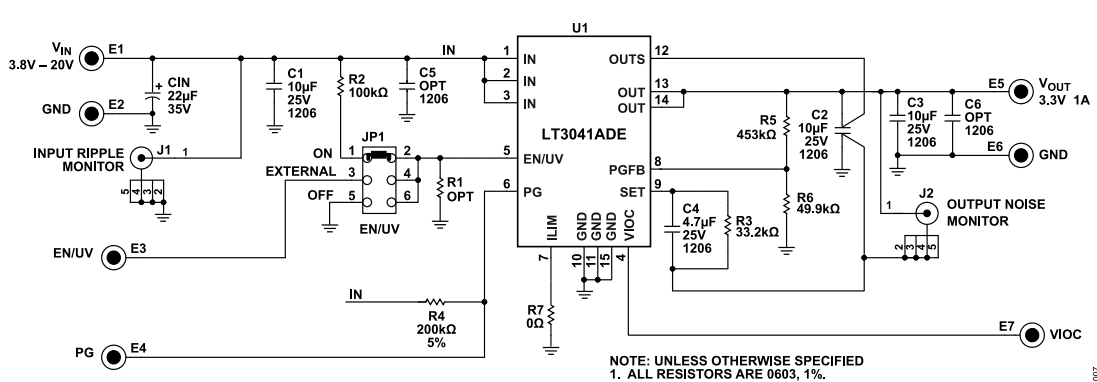

Schematic - Analog Devices Inc. DC3158A Evaluation Board
