Analog Devices Inc. DC1717B Demonstration Board

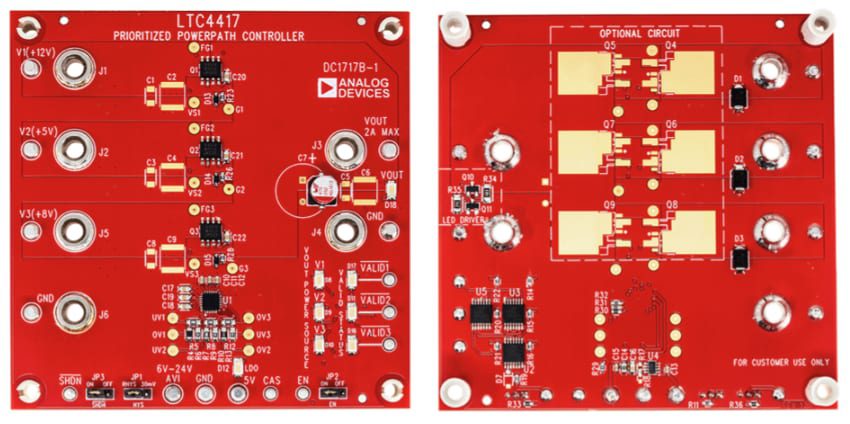

Analog Devices Inc. DC1717B Demonstration Board uses the LTC4417 Controller to arbitrate between three input supply rails, selecting the highest priority, valid supply to power the load. The rail’s priority is defined by the input connection (V1-V3). Each rail has overvoltage and undervoltage thresholds set by external resistors. If the highest priority rail voltage falls out of the defined window (overvoltage or undervoltage), the rail with the next highest priority (which is valid) is enabled and powers the load. Two or more LTC4417s can be cascaded to provide a switchover between more than three rails.
