Analog Devices Inc. ADuM4165 & ADuM4166 USB 2.0 Port Isolators

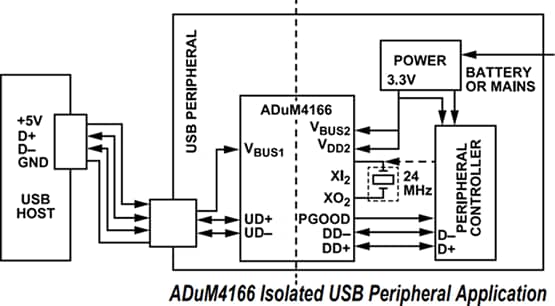

Analog Devices Inc. ADuM4165 and ADuM4166 USB 2.0 Port Isolators utilize iCoupler® technology to dynamically support all USB 2.0 data rates, low (1.5 Mbps), full (12 Mbps), or high (480 Mbps), as required. The ADUM4165 and ADUM4166 support host isolation with automatic speed negotiation as well as peripheral isolation. High-speed data is retimed for jitter reduction, requiring an external clock signal or crystal input. The ADuM4165 supports the clock or crystal input on the upstream side, and the ADuM4166 supports the clock or crystal input on the downstream side, offering two options to best suit the system design. Analog Devices Inc. ADuM4165 and ADuM4166 USB 2.0 Port Isolators are housed in a SOIC-20 wide-body package and feature a -55°C to +125°C operating temperature range.

Features

USB 2.0 signaling with automatic detection of low, full, and high-speed connections
- 1.5Mbps, 12Mbps, and 480Mbps data rates
Bidirectional USB isolator for upstream or downstream ports
- Redriving and high-speed data retiming for input jitter removal and an open eye

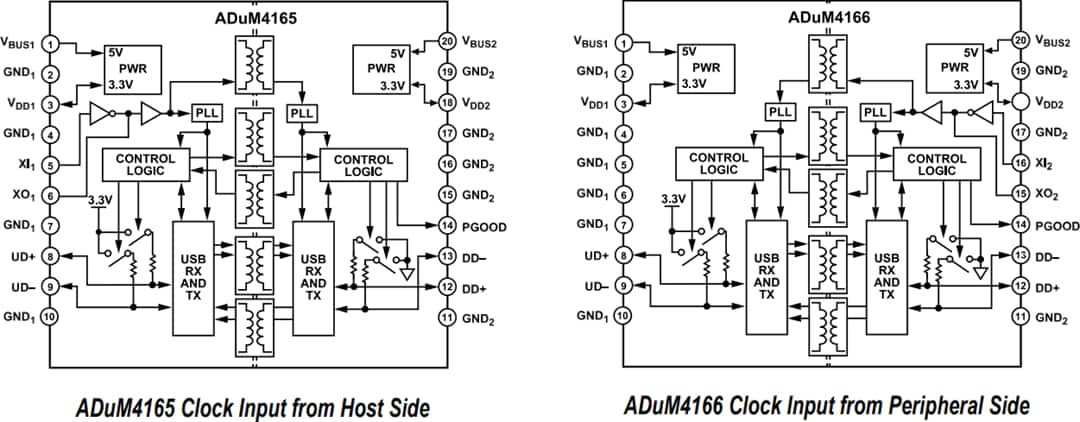

- Flexible clock input options
4.5V to 5.5V V_BUSx or 3.0V to 3.6V operation on each side
- 21mA typical idle, low or full speed mode supply current
- 48mA typical idle, high-speed mode supply current
Ultra low power standby in USB 2.0 suspend (L2) or disconnect
- 1.7mA typical low power standby, upstream supply current
- 20μA typical low power standby, downstream supply current

50kV/μs common-mode transient immunity
±8000 V IEC 61000-4-2 ESD protection across the isolation barrier
Passed CISPR32/EN55032 Class B emissions
Safety and regulatory approvals
- UL: 5700 V_rms for 1 minute per UL 1577
- CSA Component Acceptance Notice 5A
  - IEC 62368-1, IEC 61010-1 and IEC60601‑1
- VDE certificate of conformity
  - DIN V VDE V 0884-11 (VDE V 0884-11):2017-01
  - V_IORM = 849 V_PEAK
-55°C to +125°C operating temperature range:
20-lead, wide-body, increased creepage SOIC_IC package with 8.3mm creepage and clearance
