Analog Devices Inc. ADuM340E/ADuM341E/ADuM342E Quad Digital Isolators

Analog Devices ADuM340E/ADuM341E/ADuM342E 5.7kV_RMS Quad Digital Isolators are based on iCoupler^® technology. The ADuM340E/ADuM341E/ADuM342E incorporates high-speed, complementary metal-oxide semiconductor (CMOS) and back-to-back monolithic air core transformer technology. The isolation components feature outstanding performance characteristics and meet CISPR 32/EN 55032 Class B limits at 5Mbps. The device supplies 10ns of maximum propagation delay with a pulse width distortion of less than 3ns at 5V operation. Channel matching is tight at 3.0ns maximum.

The Analog Devices ADuM340E/ADuM341E/ADuM342E quad digital isolators have independent data channels and are available in various configurations with a withstand voltage rating of 5.7kV_RMS. The ADuM340E/ADuM341E/ADuM342E operates with the supply voltage on either side ranging from 2.25V to 5.5V. This range allows compatibility with lower voltage systems and enables voltage translation functionality across the isolation barrier.

Two fail-safe options are offered, by which the outputs transition to a predetermined state when the input power supply is not applied.

Features

180kV/µs typical high common-mode transient immunity
Low propagation delay
- 6.2ns typical (10ns maximum) for 5V operation
Low dynamic power consumption, <1.65mA/ch at 1Mbps
Safety and regulatory approvals
- UL recognition of 5700V_RMS for 1 minute per UL 1577
- VDE certificate of conformity (pending)
  - DIN V VDE V 0884-11 (VDE V 0884-11):2017-01
  - V_IORM = 1173V peak
  - 10,000V peak reinforced surge isolation voltage
- CSA certification per IEC 62368-1 and IEC 61010-1 (pending)
- TÜV Süd certification per EN 62368-1 (pending)
- CQC certification per GB4943.1-2022 (pending)

High robustness to radiated and conducted noise
2.25V to 5.5V level translation
150Mbps maximum guaranteed data rate for 5V operation
+125°C high-temperature operation
±8kV IEC 61000-4-2 ESD protection across the isolation barrier
±5kV HBM ESD protection on input/output pins
Fail-safe high (E1) or low (E0) options
16-lead, RoHS compliant, SOIC package
Backward compatibility with
- ADuM1400/ADuM1401/ADuM1402
- ADuM2400/ADuM2401/ADuM2402
- ADuM140E/ADuM141E/ADuM142E
- ADuM240E/ADuM241E/ADuM242E
AEC-Q100 qualified for automotive applications

Applications

Serial peripheral interface (SPI) data converter isolation
RS-485 and controller area network with flexible data rate (CAN FD) industrial field bus isolation

PWM controller signal isolation
General-purpose multichannel isolation

Analog Devices Inc. ADuM340E/ADuM341E/ADuM342E Quad Digital Isolators

Features

Applications

Videos

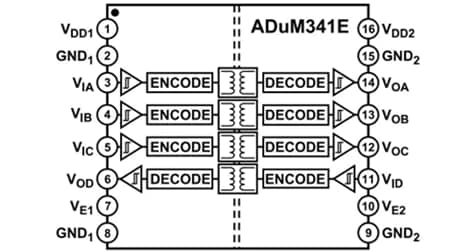

Block Diagram
