Analog Devices Inc. ADuM3195 Isolated Amplifiers

Analog Devices ADuM3195 Isolated Amplifiers use iCoupler® technology and offer exceptional stability. The Analog Devices ADuM3195 has low offset and gain errors, making them ideal for isolated voltage sensing applications. Unlike optocouplers, which can vary in performance with time and temperature, ADuM31951’s transfer functions remain consistent from -40°C to +125°C.

Features

High-impedance input for isolated voltage measurement
±6mV (Max) at 25°C and -22µV/°C (Typ) low offset error and drift (output offset voltage)
±0.5% (max) and ±27ppm/°C (max) low gain error and drift
Voltage-supply range
- 4.5V to 5.5V V_DD1
- 4.5V to 5.5V V_DD2
210kHz bandwidth
3000Vrms for ADuM3195 isolation voltage
AEC-Q100 qualified for automotive applications

Safety and regulatory approvals (pending)
- 3000V_rms for 1 minute per UL 1577 UL recognition (pending)
- CSA (pending)
- VDE certificate of conformity (pending)
- D_IN VDE V 0884-11:2017-01
- V_IORM = 636V peak (reinforced)
Wide temperature range
- -40°C to +125°C ambient operation
- 150°C maximum junction temperature

Applications

Inverters
DC to DC converters
On-board chargers

Analog Devices Inc. ADuM3195 Isolated Amplifiers

Features

Applications

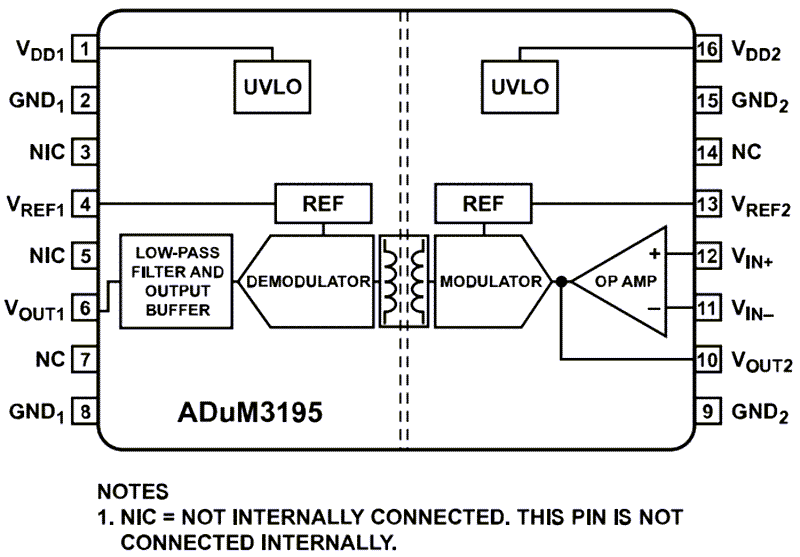

Block Diagram
