Analog Devices Inc. ADRV9002 Evaluation Boards

Analog Devices Inc. ADRV9002 Evaluation Boards are designed to evaluate the ADRV9002, a dual-channel narrow/wide-band RF transceiver. These evaluation boards provide a 2×2 transceiver platform for device evaluation and include a high-efficiency power circuit board and a high-performance clocking/MCS distribution. The ADRV9002 evaluation boards are connected with the FPGA motherboard through the FMC connector that forms a complete evaluation platform for ADRV9002.

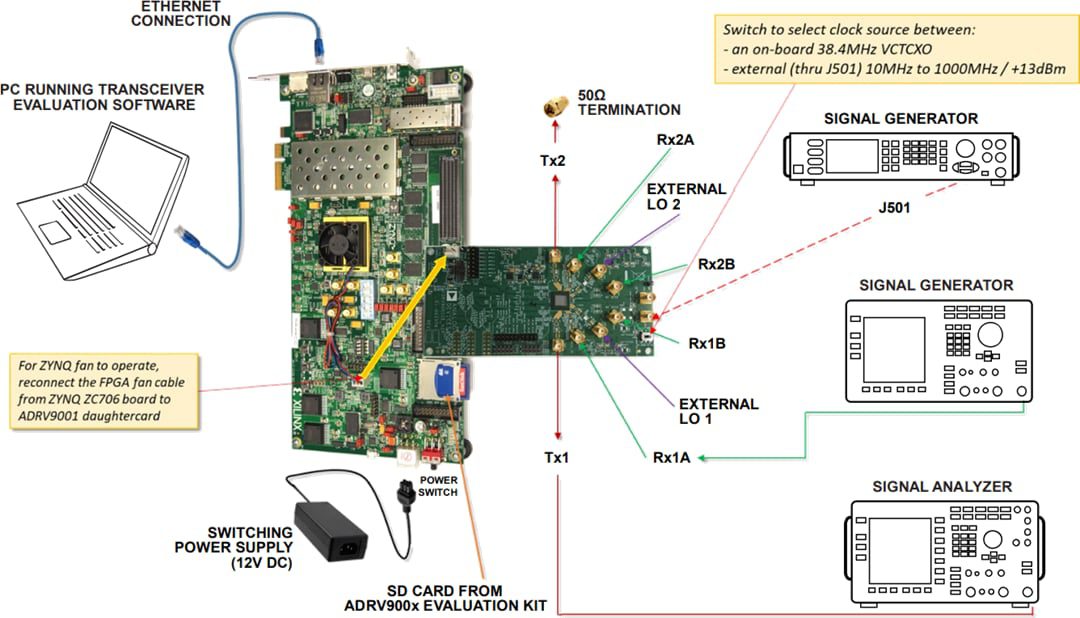

The Analog Devices Inc. ADRV9002 Evaluation Boards are designed to be used in conjunction with the ZYNQ ZC706 FPGA Motherboard (EK-Z7-ZC706-G), which then connects to a PC using an Ethernet interface.

Features

2×2 narrow/wide-band RF transceiver platform
Complete radio cards for evaluation:
- ADRV9002NP/W1/PCBZ for 30MHz to 3GHz frequency band range
- ADRV9002NP/W2/PCBZ for 3GHz to 6GHz frequency band range
Powered from single FMC connector

FMC connector to FPGA motherboard (ZC706)
On-board:
- Clock and MCS distribution
- Reference design for high-efficiency power supply solution
- Power consumption monitoring solution
