Analog Devices Inc. ADRF5717 Silicon Digital Attenuators

Analog Devices Inc. ADRF5717 Silicon Digital Attenuators are 2-bit digital attenuators with a 48dB attenuation range in 16dB steps that support glitch-free operation. These attenuators function at a 1MHz to 30GHz ultra wideband frequency range with better than 2.8dB insertion loss and 3.3dB attenuation accuracy. The ADRF5717 silicon digital attenuators offer ATTIN and ATTOUT ports that provide RF input power handling capability of 30dBm steady-state average and 33dBm steady-state peak. These attenuators feature a dual-supply voltage of 3.3V and -3.3V and support single-supply operation. The ADRF5717 silicon attenuators are compatible with Complementary Metal-Oxide Semiconductors (CMOS) and Low Voltage Transistor-Transistor Logic (LVTTL). Typical applications include industrial scanners, test and instrumentation, 5G millimeter wave cellular infrastructure, Electronic Counter Measures (ECMs), microwave radios, and Very Small Aperture Terminals (VSATs).

Features

1MHz to 30GHz ultra-wideband frequency range
16dB typical steps to 48dB attenuation range
Low insertion loss:
- 1.5dB at 8GHz
- 2dB at 18GHz
- 2.8dB at 30GHz
Attenuation accuracy:
- ± (0.20 + 2.3% of attenuation state)dB typical up to 8GHz
- ± (0.30 + 3.2% of attenuation state)dB typical up to 18GHz
- ± (0.30 + 6.5% of attenuation state)dB typical up to 30GHz
Typical step error:
- ± 0.8dB typical up to 8GHz
- ± 1.3dB typical up to 18GHz
- ± 3.3dB typical up to 30GHz
High input linearity:
- 30dBm typical P0.1dB insertion loss state
- 30dBm typical P0.1dB other attenuation states
- 51dBm typical IP3 insertion loss state
- 49dBm typical IP3 other attenuation state
High RF power handling:
- Input at ATTIN and ATTOUT:
  - 30dBm typical steady state average
  - 33dBm typical steady state peak

6.6µs typical RF amplitude settling time (0.1dB of final RF_OUT)
Single-supply operation supported
Tight distribution in relative phase
No low-frequency spurious signals
Parallel mode control and RoHS-compliant
Complementary Metal-Oxide Semiconductors (CMOS)/Low Voltage Transistor-Transistor Logic (LVTTL) compatible
20-terminal, 3mm x 3mm, and Land Grid Array [LGA]

Applications

Industrial scanners
Test and instrumentation
5G millimeter wave cellular infrastructure
Military radios and radars

Electronic Counter Measures (ECMs)
Microwave radios
Very Small Aperture Terminals (VSATs)

Analog Devices Inc. ADRF5717 Silicon Digital Attenuators

Features

Applications

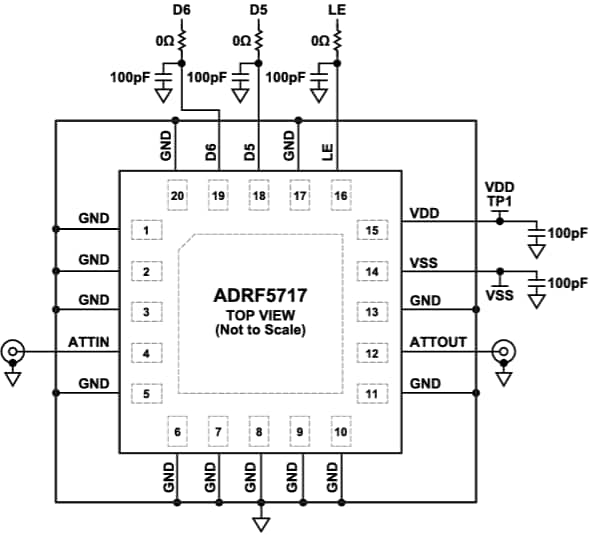

Simplified Application Circuit Diagram

Pin Configuration Diagram

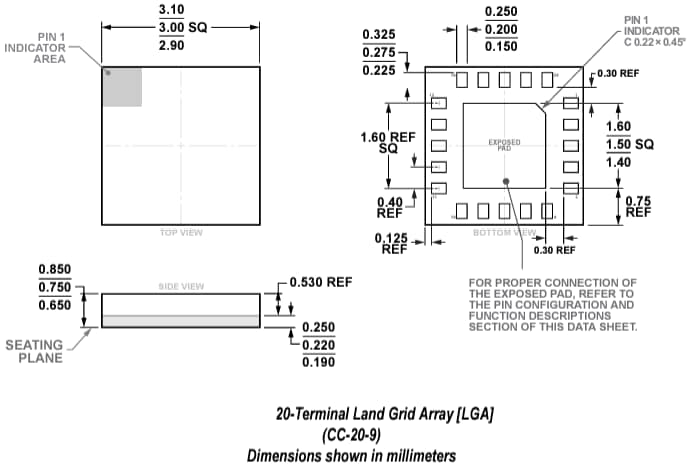

Dimensions Diagram
