Analog Devices Inc. ADRF5301 Reflective SPDT Switches

Analog Devices Inc. ADRF5301 Reflective SPDT Switches are designed for 5G applications from 37GHz to 49GHz. The silicon-manufactured ADRF5301 switches offer a low 1.4dB insertion loss, high isolation of 30dB, and 28dBm average RF input power handling capability (36dBm peak). An incorporated negative voltage generator (NVG) operates with a single positive 3.3V supply applied to the VDD pin. The device employs complementary metal-oxide semiconductor (CMOS)-/low voltage transistor-to-transistor logic (LVTTL)-compatible control. Analog Devices Inc. ADRF5301 Reflective SPDT Switches reside in a 20-terminal, 3mm2 LGA package and operate from -40°C to +105°C.

Features

Reflective design
Low insertion loss
High isolation
Single-supply operation
Internal NVG
High input linearity

High RF power handling
20-terminal, 3mm², land grid array (LGA) package
Reflow solderable
RoHS compliant

Applications

Industrial scanner
Test instrumentation
Military radios, radars, and electronic countermeasures (ECMs)

Cellular infrastructure, mmWave 5G
Microwave radios and very small aperture terminals (VSATs)

Specifications

37GHz to 49GHz frequency range
1.4dB typical insertion loss
30dB typical isolation
Input linearity
- 36dB for P0.1dB
- 52dBm for input IP3

28dBm average RF power handling, 36dBm peak
15dB return loss
450µA supply current
-40°C to +105°C operating temperature range
50ns RF settling time (0.1dB final RF output)
3.3V operation

Analog Devices Inc. ADRF5301 Reflective SPDT Switches

Features

Applications

Specifications

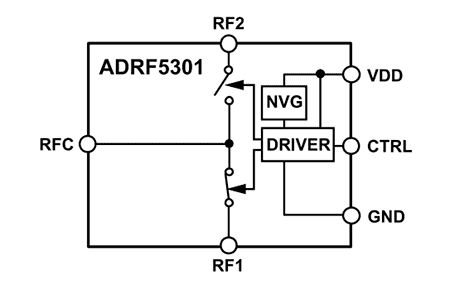

Functional Block Diagram
