Analog Devices Inc. ADRF5032 SPDT Switches

Analog Devices Inc. ADRF5032 SPDT Switches are reflective, single-pole, double-throw (SPDT) switches manufactured using silicon. The ADRF5032 features a 1GHz to 60GHz frequency range with an insertion loss lower than 2.0dB and isolation higher than 32dB. The switches offer an RF input power handling capability of 24dBm for both through paths and 21dBm for hot switching. The ADRF5032 requires a ±3.3V dual supply voltage. The device utilizes a CMOS and low-voltage transistor logic (LVTTL) compatible control.

The ADRF5032 is available in a 12-terminal, 2.5mm × 2.5mm, RoHS-compliant land grid array (LGA) and operates from -40°C to +105°C.

Features

Low insertion loss
- 1.3dB typical up to 40GHz
- 1.9dB typical up to 55GHz
- 2.0dB typical up to 60GHz
High isolation
- 43dB typical up to 40GHz
- 37dB typical up to 55GHz
- 32dB typical up to 60GHz
High input linearity
- P0.1dB: 24dBm typical
- IP3: 45dBm typical

High-RF power handling
- Through path of 24dBm
- Hot switching path of 21dBm
Ultra-wideband frequency range of 1GHz to 60GHz
Reflective design
CMOS/LVTTL compatible
No low-frequency spur
RF switching time of 15ns
RF settling time (50% V_CTRL to 0.1dB of RF output) of 35ns
Dual-supply operation of ±3.3V
12-terminal, 2.5mm x 2.5mm, RoHS-compliant, LGA package

Applications

Industrial scanners
Test and instrumentation
Cellular infrastructure of 5G mmWave

Military radios, radars, electronic countermeasures (ECMs)
Microwave radios and very small aperture terminals (VSATs)

Analog Devices Inc. ADRF5032 SPDT Switches

Features

Applications

Functional Block Diagram

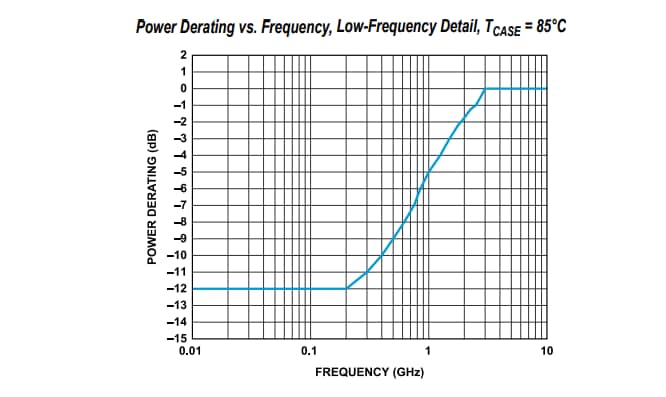

Power Derating vs. Frequency
