Analog Devices Inc. ADRF5022-EVALZ Evaluation Board

Analog Devices ADRF5022-EVALZ Evaluation Board is a full-featured device to evaluate the ADRF5022. The ADRF5022 is a single-pole, double-throw (SPDT) switch manufactured in the silicon process. The ADI ADRF5022-EVALZ evaluation board is designed to demonstrate the features and performance of the ADRF5022, offering an easy connection and thru line for calibration.

Features

Full-featured evaluation board for the ADRF5022
Easy connection to the test equipment
Thru line for calibration

Applications

Test and instrumentation
5G millimeter wave cellular infrastructure
Microwave radios and very small aperture terminals (V_SATs)

Military radios, radars, and electronic countermeasures (ECMs)
Industrial scanners

Required Equipment

DC power supplies
Network analyzer

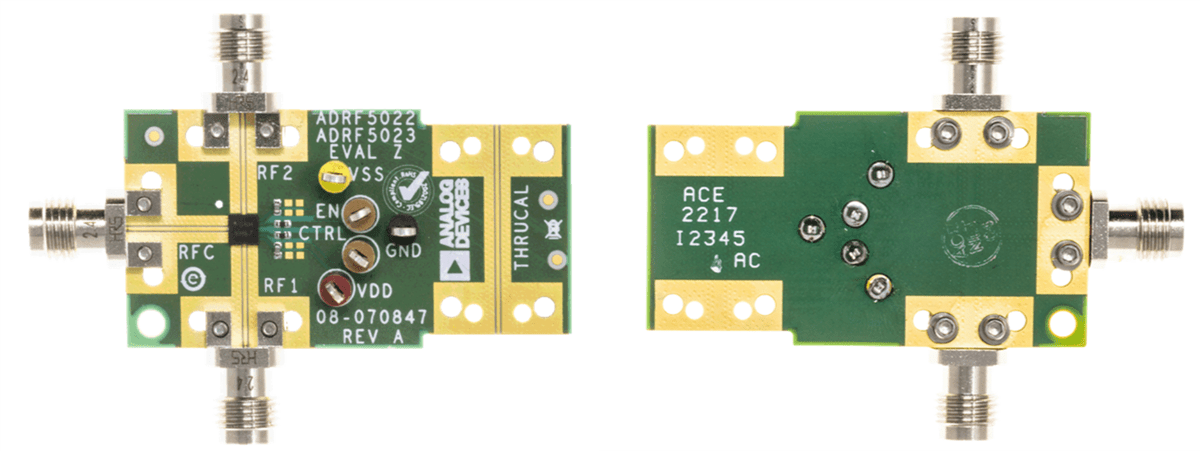

Layout

Location Circuit - Analog Devices Inc. ADRF5022-EVALZ Evaluation Board

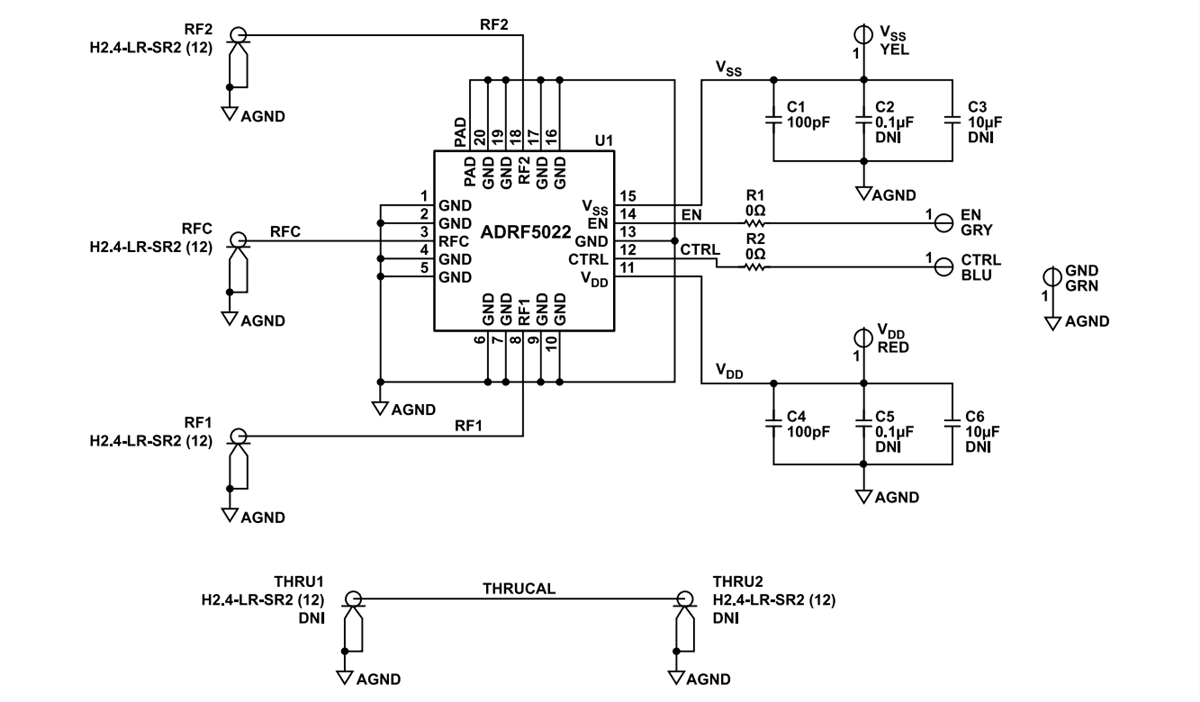

Schematic

Schematic - Analog Devices Inc. ADRF5022-EVALZ Evaluation Board
