Analog Devices Inc. ADPA9007 2W Power Amplifiers

Analog Devices Inc. ADPA9007 2W Power Amplifiers work from DC to 28GHz with an internally-matched and DC-coupled RF input and output. The Analog Devices Inc. ADPA9007 has an integrated temperature-compensated RF power detector and a built-in temperature sensor. With a gain of 12.5dB, an OP1dB of 33dBm, and an OIP3 of 45dBm from 2GHz to 16GHz, the amplifier operates on a typical 15V supply voltage with an adjustable 500mA bias current.

Features

Wideband, internally-matched, RF power amplifier
DC-coupled input and output
Integrated RF power detector
Integrated temperature sensor
12.5dB typical at 2GHz to 16GHz gain

33dBm typical at 2GHz to 16GHz OP1dB
34dBm typical at 2GHz to 16GHz P_SAT
45dBm typical at 2GHz to 16GHz OIP3
32-lead, 5.00mm x 5.00mm, LFCSP_CAV package

Applications

Electronic warfare
Radar
Test and measurement equipment

Analog Devices Inc. ADPA9007 2W Power Amplifiers

Features

Applications

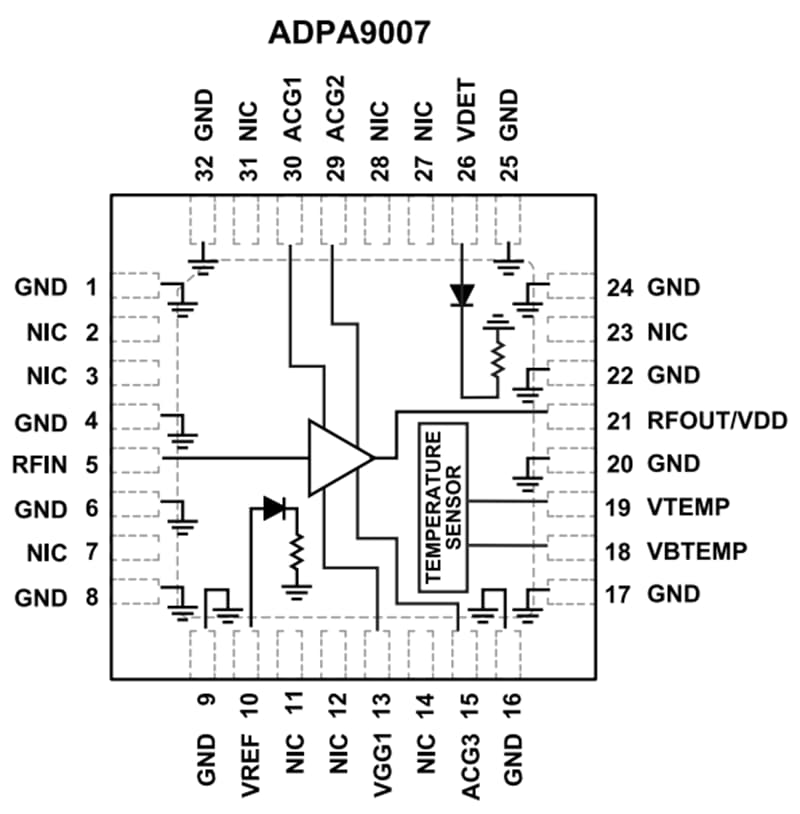

Block Diagram
