Analog Devices Inc. ADPA1122 20W GaN Power Amplifier

Analog Devices Inc. ADPA1122 20W GaN Power Amplifier provides 43dBm (20W) with more than 43% power added efficiency (PAE) across the 8.2GHz to 11.8GHz frequency range. The ADPA1122 gallium nitride (GaN) power amplifier delivers ±0.5dB of gain flatness from 9.6GHz to 11GHz. The ADI ADPA1122 is optimized for pulsed military, marine, and weather radar applications.

The ADPA1122 is housed in an 18-terminal, 7mm × 7mm, ceramic leadless chip carrier with a heat sink [LCC_HS]. The package exhibits low thermal resistance and is compatible with surface-mount manufacturing techniques.

Features

Internally matched and AC-coupled 20W GaN power amplifier
Integrated temperature-compensated RF power detector
P_OUT with P_IN = 22dBm, 43.5dBm typical from 9.6GHz to 11GHz
Small signal gain of 31dB typical from 9.6GHz to 11GHz

Power gain with P_IN = 22dBm: 21.5dB typical from 8.2GHz to 11GHz
PAE is 46% typical from 9.6GHz to 11GHz
Supply voltage of 28V at 200mA on 10% duty cycle
18-terminal, 7mm × 7mm, LCC_HS package

Applications

Weather radars
Marine radars
Military radars

Analog Devices Inc. ADPA1122 20W GaN Power Amplifier

Features

Applications

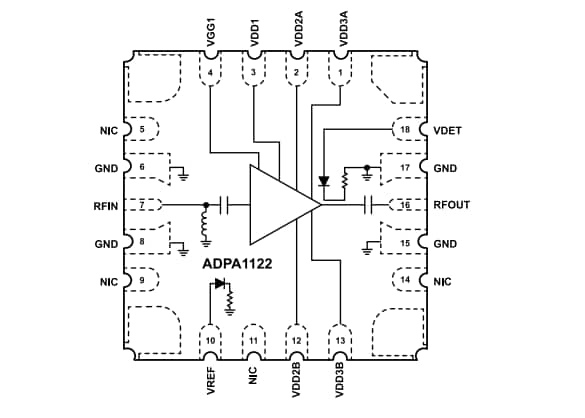

Functional Block Diagram
