Analog Devices Inc. ADP5140-EVALZ Evaluation Kit

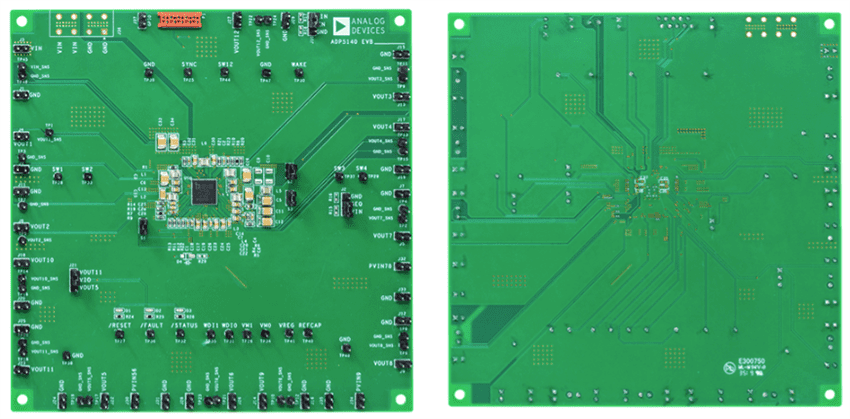

Analog Devices Inc. ADP5140-EVALZ Evaluation Kit provides a complete and compact solution that allows users to evaluate the performance of the ADP5140 PMIC with a near-ideal printed circuit board (PCB) layout. The primary device on the ADP5140-EVALZ, the ADP5140, integrates four high-performance, synchronous step-down buck regulators (Buck1 to Buck4), one boost regulator, and seven low noise low dropout (LDO) regulators (LDO1 to LDO7). Each voltage rail is monitored internally, and any fault event is reported to the system through the RESET pin, FAULT pin, and STATUS pin.

The ADP5140-EVALZ has enable and sequence controls for all regulators that allow every voltage rail to start up with a fixed sequence. The ADP5140-EVALZ has a serial peripheral interface (SPI) for system control and diagnostics. Dedicated graphical user interface (GUI) software is associated with the ADP5140-EVALZ for flexible evaluation of the ADP5140.

Features

Fully featured evaluation board for the ADP5140
Compact solution size
4-layer, high glass transition temperature (TG) PCB for superior thermal performance
Connections through vertical, printed circuit, and tail pin headers
3.5V to 4.1V supply voltage range (3.7V typical)
Adjustable output for Buck2 and Buck3 regulators

Fixed output for Buck1, Buck4, boost, and all LDO regulators
Fixed start-up sequence
Voltage monitor and watchdog function
RESET, FAULT, and STATUS outputs
SPI communication protocol
RoHS-compliant

Kit Contents

ADP5140-EVALZ board
USB-SDP-CABLEZ serial interface cable
ADP5140 GUI software

Required Equipment

DC power supply
Electronic load
Oscilloscope
