Analog Devices Inc. ADP5055-EVALZ Evaluation Kit is a demonstration and development platform for the ADP5055 Triple Buck Regulator. The ADP5055 is an integrated power solution combining three high-performance buck regulators into a compact package. The ADP5055 enables direct connection to high input voltages up to 18V with no pre-regulators. All channels on the ADP5055 integrate high-side and low-side power MOSFETs to achieve an optimized efficiency solution.

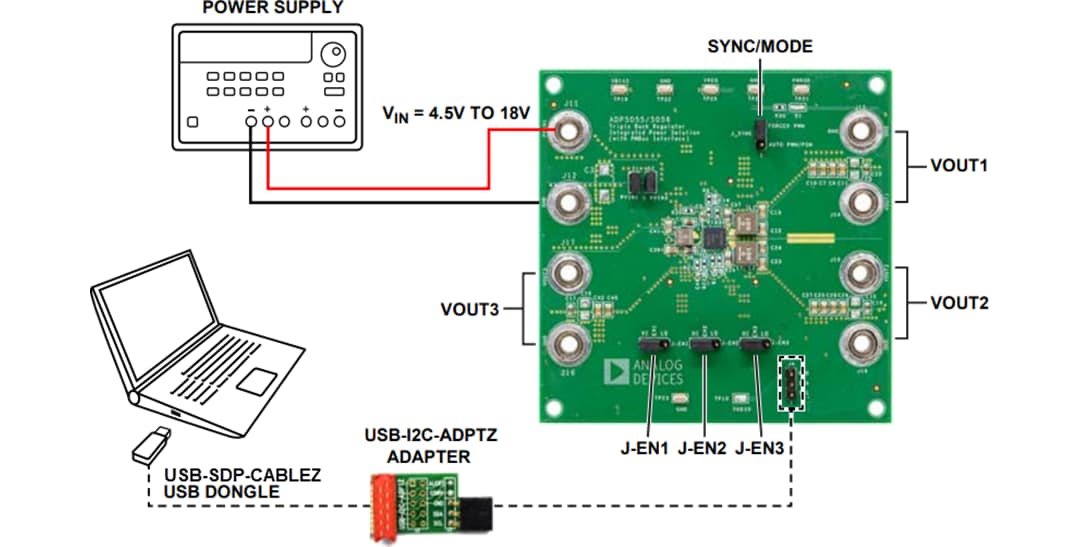

The Analog Devices Inc. ADP5055-EVALZ Evaluation Kit features a pre-installed ADP5055 Triple Buck Regulator in a 5.0mm x 5.50mm LGA-43 package. The Evaluation Kit is designed to work with the USB-SDP-CABLEZ USB to Serial I/O Interface to connect to a PC. The ADP5055 GUI (Graphic User Interface) software can then be used to evaluate the power management functionalities and to view system status.
The ADP5055 GUI Software and USB-SDP-CABLEZ Driver can be downloaded from Analog Devices Inc.
The USB-SDP-CABLEZ package includes a USB cable and the USB-I2C-ADPTZ Adapter Board, both of which are required to connect the ADP5055-EVALZ to the PC.
