Analog Devices Inc. ADL7078 Low Noise Amplifiers

Analog Devices ADL7078 Low Noise Amplifiers offer a 1GHz to 20GHz range with 32dBm RF input power survivability. The device integrates AC-coupling capacitors and bias inductors, resulting in a compact printed circuit board (PCB) footprint.

The ADI ADL7078 features a gain of 13dB, an output power for 1dB compression (OP1dB) of 16.5dBm, a typical output third-order intercept (OIP3) of 28dBm, and a noise figure of 4.4dB from 2GHz to 18GHz. The ADL7078 LNA operates on a 5V supply voltage (V_DD) with a nominal quiescent current (I_DQ) of 175mA.

The ADL7078 is fabricated on a gallium arsenide (GaAs) pseudomorphic high electron mobility transfer (pHEMT) process. The device is available in a RoHS-compliant, 24-lead, 4.00mm × 4.00mm, lead frame, chip scale package (LFCSP), and is specified for operation from -40°C to +85°C.

Features

32dBm high RF input power survivability
Integrated AC coupling capacitors and bias inductor
Single positive supply of 5V with I_DQ = 175mA
RBIAS drain current adjustment pin

Gain of 13dB typical from 2GHz to 18GHz
OIP3 of 28dBm typical from 2GHz to 18GHz
OIP2 of 48dBm typical from 2GHz to 18GHz

Applications

Electronic warfare
Test and measurement equipment
Satellite communications

Analog Devices Inc. ADL7078 Low Noise Amplifiers

Features

Applications

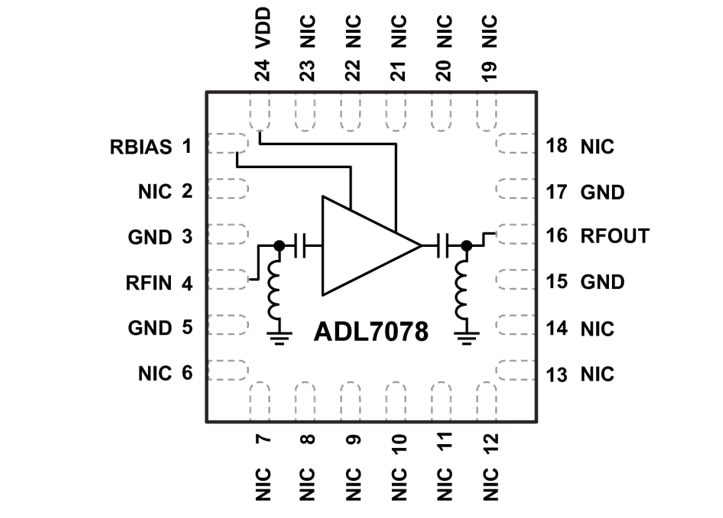

Pinout
