Analog Devices Inc. ADL7078-EVALZ Evaluation Board

Analog Devices ADL7078-EVALZ Evaluation Board is a 2-layer printed circuit board (PCB) fabricated from 10mil thick, Rogers 4350B, and copper clad. The ADL7078-EVALZ RF_IN and RF_OUT ports are populated with 2.9mm female coaxial connectors, and the affiliated RF traces have a 50Ω characteristic impedance. The ADI ADL7078-EVALZ is engineered with components ideal for use over the entire -40°C to +85°C operating temperature range.

Features

Evaluates the ADL7078 high survivability, low noise amplifier, 1GHz to 20GHz

End launch, 2.9mm RF connectors
Through calibration path (depopulated)

Required Equipment

RF signal generator
RF spectrum analyzer

RF network analyzer
5V, 500mA power supply

Analog Devices Inc. ADL7078-EVALZ Evaluation Board

Features

Required Equipment

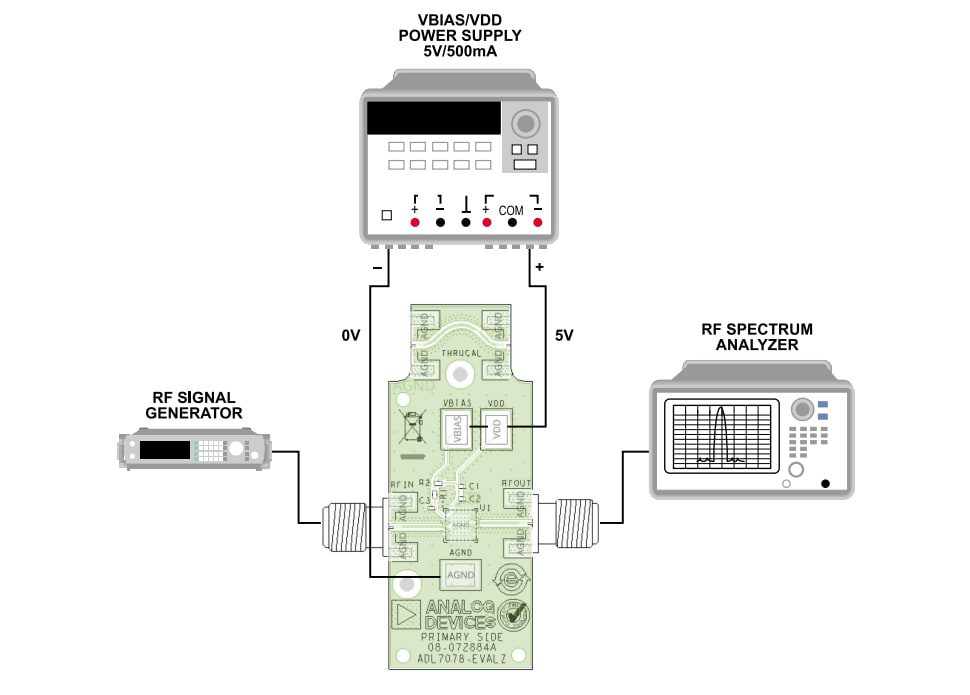

Operating Block Diagram

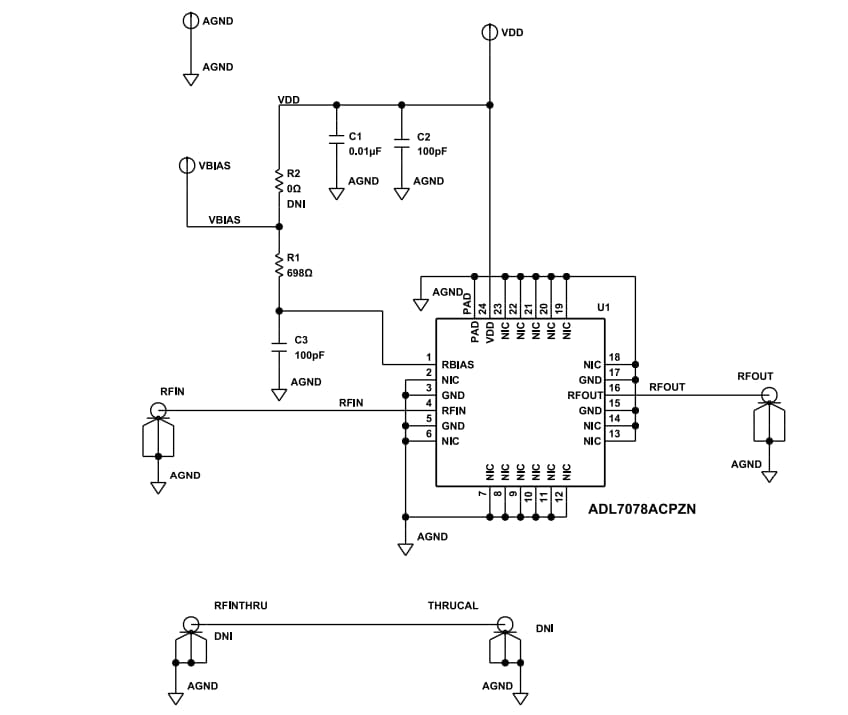

Schematic

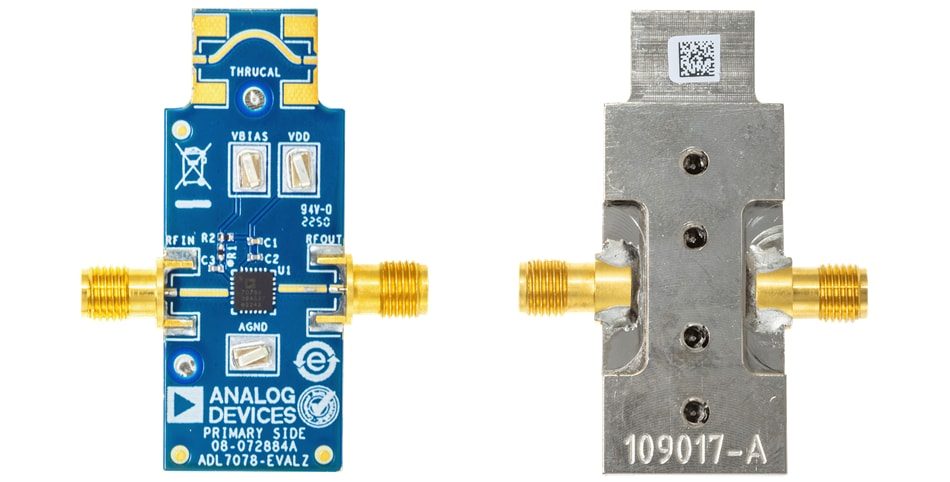

Layout
