Analog Devices Inc. ADL5960-EVALZ Evaluation Board & Kit

Analog Devices ADL5960-EVALZ Evaluation Board and Kit facilitate the evaluation of the ADL5960 vector network analyzer (VNA) front-end IC. The ADL5960 10MHz to 20GHz Network Analyzer Front End includes a bidirectional resistive bridge, downconversion mixers, programmable IF amplifiers and filters, and a versatile local oscillator (LO) interface.

The ADI ADL5960-EVALZ evaluation board and kit offers printed circuit board (PCB) RF transmission lines with 50Ω controlled impedance on Rogers RO3003 low-loss substrate material.

Features

Full-featured evaluation board for the ADL5960
Integrated bidirectional bridge measures forward and reverse coupled signal

Required Equipment

Power supply
1x or 2x RF signal generators
Spectrum analyzer or oscilloscope

DC2026C (Linduino One) board (included in the ADL5960-KITEVALZ kit)
Experimental impedances such as open, short, and load

Analog Devices Inc. ADL5960-EVALZ Evaluation Board & Kit

Features

Required Equipment

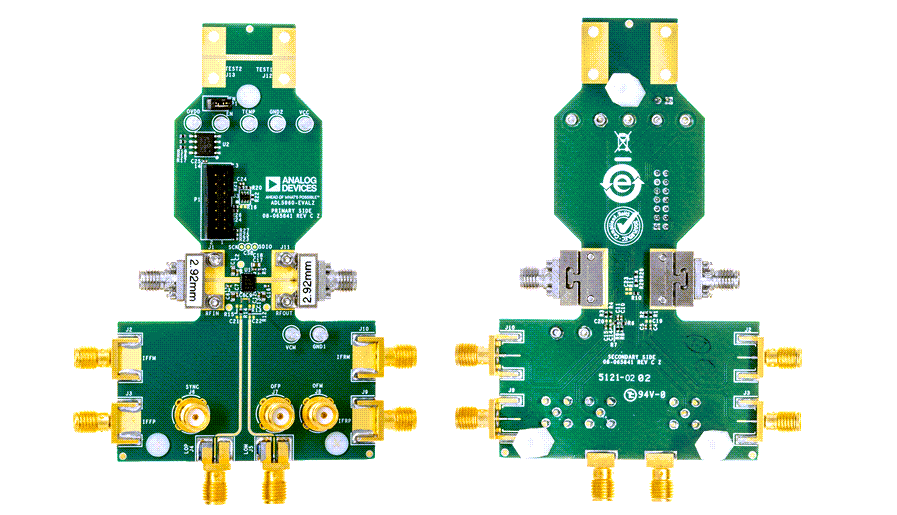

Layout

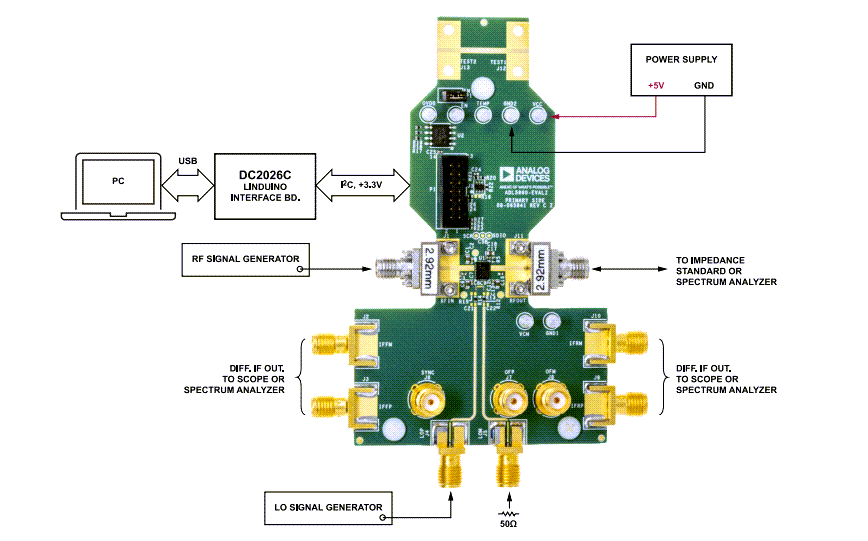

Basic Test Setup
