Analog Devices Inc. ADL5308 Evaluation Board & Kit

Analog Devices ADL5308 Evaluation Board and Kit is configured to evaluate the operation of the ADL5308 logarithmic converter IC. The ADL5308 is a monolithic logarithmic transimpedance amplifier optimized for measuring low frequency and wide dynamic range signal power in fiber optic systems. The logarithmic slope and intercept are both factory-trimmed to a nominal value of 200mV/dec and 10pA, respectively. Both can be adjusted through the I²C interface. The ADI ADL5308 evaluation board offers a comparator reference and output connectors with adjustable hysteresis.

Features

Full-featured evaluation board for the ADL5308
Supports external electrical input or onboard photodiode (PD) for optical input

On-chip or external PD bias (PDB)
Comparator reference and output connectors with adjustable hysteresis

Required Equipment

5V_DC power supply (minimum 50mA output current)
Precision source measurement unit (for example, Keithley 236)
Triax cable
Triax-to-BNC adapter (Triax center to BNC center, Triax shield to BNC shield, Triax inner guard may be connected to BNC shield or left floating)
BNC-to-SMA adapter

2x digital multimeters
Oscilloscope
DC2026C (Linduino® One) board (Required only for adjusting the ADL5308’s internal registers, not needed for the evaluation of ADL5308 in factory default settings)

Analog Devices Inc. ADL5308 Evaluation Board & Kit

Features

Required Equipment

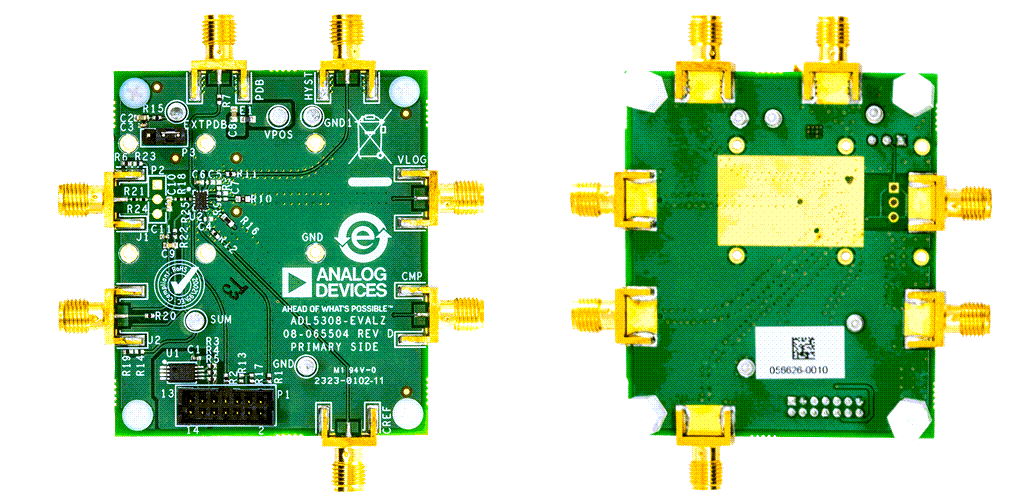

Layout

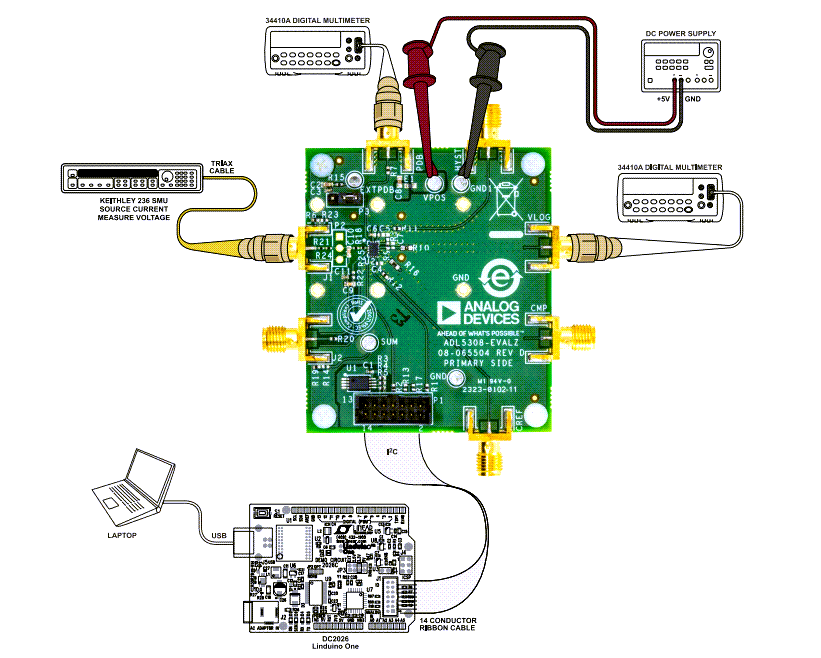

Basic Test Setup
