Analog Devices Inc. ADCA5191 5MHz to 1800MHz Broadband CATV Amplifiers

Analog Devices Inc. ADCA5191 5MHz to 1800MHz Broadband CATV Amplifiers are medium power gain block amplifiers with excellent linearity across a flexible bias range. This feature enables a power-efficient design implementation for various applications. The ADCA5191 supports 25.8dB of flat gain up to 1800MHz, ideal for Data Over Cable Service Interface Specification (DOCSIS) 4.0 downstream applications. Additionally, the device is also well suited for upstream applications to 700MHz as the output stage.

The ADI ADCA5191 5MHz to 1800MHz Broadband CATV Amplifiers are available in an industry-standard, 5mm × 5mm, 32-lead, lead frame chip-scale package (LFCSP). The package provides an exposed pad on the bottom for improved thermal performance.

Features

Frequency range of 5MHz to 1800MHz
High gain of 25.8dB at 1800MHz
- −37dB Typical excellent reverse isolation
Excellent return losses:
- −20dB at 45MHz to 1218MHz
- −18dB at 1218MHz to 1800MHz

51dB at 67dBmV TCP Excellent NPR (MER) performance
5.0V to 8.0V V_DD operation
Configurable dc current (total) from 250mA to 530mA
32-lead, 5mm x 5mm, LFCSP

Applications

45MHz to 1800MHz CATV infrastructure amplifier systems
5MHz to 700MHz upstream

Remote physical layer (PHY)
DOCSIS®3.1 and DOCSIS 4.0 compliant

Analog Devices Inc. ADCA5191 5MHz to 1800MHz Broadband CATV Amplifiers

Features

Applications

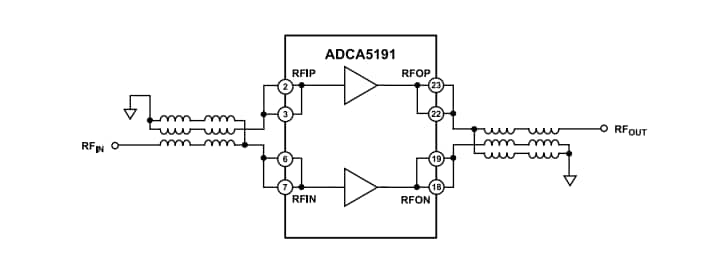

Block Diagram
