Analog Devices Inc. ADAQ8092 14-Bit 105 MSPS μModule®

Analog Devices Inc. ADAQ8092 14-Bit 105 MSPS μModule® is a high-speed dual-channel data acquisition (DAQ) solution. The device features signal conditioning, an analog-to-digital (ADC) driver, a voltage reference, and an ADC in a single package. μModule solutions simplify the development of high-speed data acquisition systems by transferring the design burden, component selection, optimization, and layout from the designer to the device. The ADAQ8092 enables a 6× footprint reduction.

Features

Dual-channel simultaneously sampling ADC
Integrated differential amplifier/ADC driver
Single-ended to differential conversion
Package footprint, 7 mm × 6 mm, 72-ball CSP_BGA
6× footprint reduction vs. discrete solution
On-chip reference circuitry with VOCM generation

CMOS, DDR CMOS, or DDR LVDS outputs
Optional data output randomizer
Optional clock duty-cycle stabilizer
Shutdown and nap modes
Serial SPI port for configuration

Applications

Communications
Cellular base stations

Analog Devices Inc. ADAQ8092 14-Bit 105 MSPS μModule®

Features

Applications

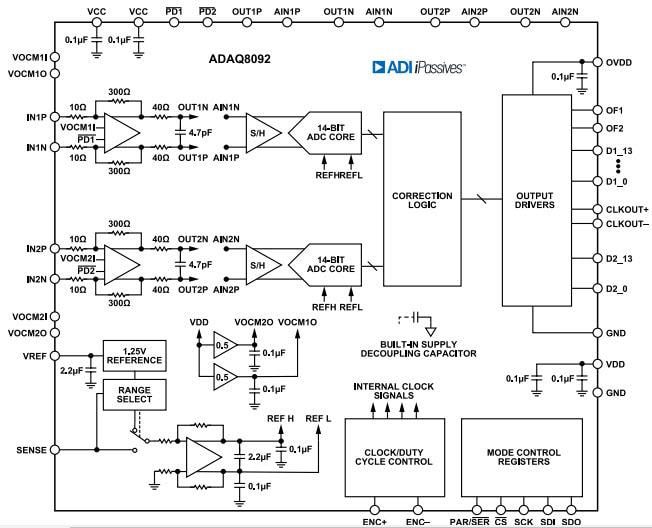

Block Diagram
