Analog Devices Inc. ADAQ23876 16-Bit Data Acquisition Solution

Analog Devices ADAQ23876 16-Bit Data Acquisition Solution is a precision, high-speed, and μModule^® that reduces the development cycle of precision measurement systems. Using System-in-Package (SIP) technology, the ADAQ23876 reduces end system component count by combining common signal processing and conditioning blocks in a single device. The ADAQ23876 also incorporates critical passive components with superior matching and drift characteristics. This data acquisition ADCs/DACs feature a serial Low Voltage Differential Signaling (LVDS) digital interface with one-lane or two-lane output modes. The ADAQ23876 operates from -40°C to 85°C temperature range. Typical applications include automatic test equipment, data acquisition, Hardware in the Loop (HiL), power analyzers, and nondestructive tests (acoustic emissions).

Features

Integrated fully differential ADC driver with signal scaling
- Wide input common-mode voltage range
- High common-mode rejection
Single-ended to differential conversion
Pin selectable input range with over range
- Input ranges with 4.096V REFBUF: ±10V, ±5V, ±4.096V, ±2.5V, and ±1.5V
Gain/attenuation options: 0.37, 0.73, 0.87, 1.38, and 2.2
- Critical passive components
- 0.005% precision matched resistor array for FDA
9mm x 9mm, 0.8mm pitch, 100-ball CSP_BGA package
- 2.5x footprint reduction vs. discrete solution
Low power, dynamic power scaling, and power-down mode
- 143mW typical @15MSPS
Throughput: 15MSPS, no pipeline delay

INL error: ±7.5ppm typical, ±15ppm maximum
- (Gain = 0.73, gain = 0.87, gain = 1.38, and gain = 2.25)
SINAD: 90dB typical @1kHz (gain = 0.37 and gain = 0.73)
THD: -121dB @1kHz, -112dB @100kHz (gain = 0.73)
Gain error: ±0.005%FS typical
Gain error drift: ±0.11ppm/°C typical
On-board reference buffer with VCMO generation
Serial LVDS interface
-40°C to 85°C wide operating temperature range

Applications

Automatic test equipment
Data acquisition
Hardware in the Loop (HiL)
Power analyzers

Nondestructive test (acoustic emissions)
Mass spectrometry
Traveling wave fault location
Medical imaging and instruments

Analog Devices Inc. ADAQ23876 16-Bit Data Acquisition Solution

Features

Applications

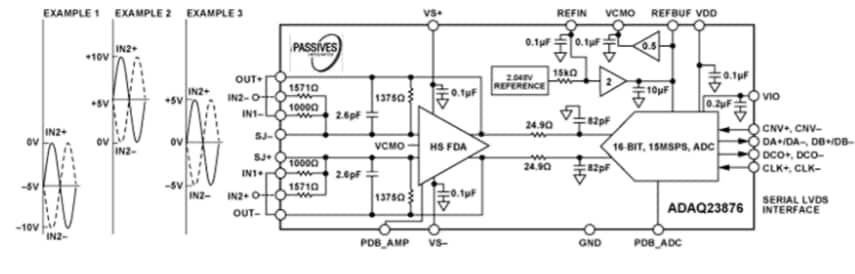

Block Diagram
