Analog Devices Inc. ADA4523-1 Evaluation Board

Analog Devices Inc. ADA4523-1 Evaluation Board is designed for the ADA4523-1 single-channel, 8-lead, micro small outline package (MSOP) operational amplifier. The ADA4523-1 is configured as a noninverting amplifier with a gain of 101. The ADA4523-1 has a typical gain-bandwidth product of 4MHz.

The EVAL-ADA4523-1ARMZ mainly consists of 0805 sized resistors and capacitors to ensure simple installation except for the bypass capacitors.

Features

  • Full-featured evaluation board for the ADA4523-1
  • Enables efficient prototyping
  • User-defined circuit configuration
  • Edge-mounted SMA connector provisions
  • Shutdown function for low-power application

Required Equipment

  • Dual output power supply
  • Signal generator
  • Oscilloscope
  • 3 banana jack to grabber cables
  • 2 SMA to BNC male cables

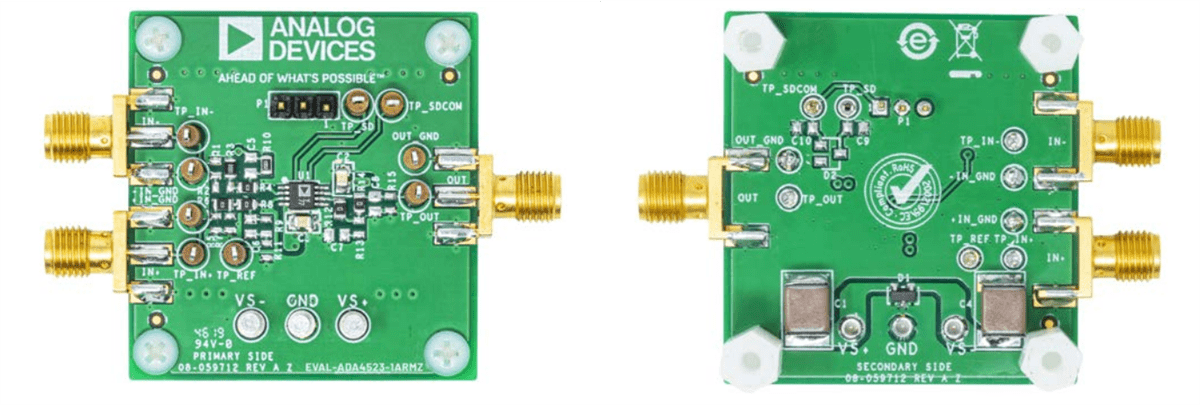

Front & Back View
