Analog Devices Inc. ADA4511-2 Rail-to-Rail Input/Output Op Amps

Analog Devices Inc. ADA4511-2 Rail-to-Rail Input/Output Op Amps are dual-channel, 40V, high precision, low-input bias current, low-offset voltage, low-offset voltage drift, low noise, rail-to-rail input/output operational amplifiers (op amps). These devices can be used at any signal chain point, including sensing, conditioning, and output drive. Through trimming, the ADA4511-2 achieves low offset drift (±0.4μV/°C typical, ±2μV/°C maximum) and low offset voltage (±25μV typical, ±75μV maximum).

The Analog Devices ADA4511-2 delivers top DC accuracy and AC precision, making it suitable for various signal chain applications. By integrating a robust mux-compatible architecture, the ADA4511-2 effectively solves common system distortion and settling problems while providing the superior accuracy required in multiplexed multichannel precision signal chains. The ADA4511-2 is specified from -40°C to +125°C and available in an 8-lead, SOIC_N package.

Features

Low ±2μV/°C maximum offset voltage drift
Low ±75μV maximum offset voltage
Low 1μV p-p voltage noise from 0.1Hz to 10Hz typical
Low 5nV/√Hz typical voltage noise density at f = 1kHz
High 140dB typical common-mode rejection
Low ±10pA maximum input bias current
Wide 10.4MHz typical gain-bandwidth product
High 19V/μs typical slew rate
Low -134dB THD at f = 1kHz
Low 1.45mA typical quiescent supply current per amplifier
Integrated EMI filter
Rail-to-rail output

Wide supply voltage operation
- 6V to 40V
- ±3V to ±20V
Multiplexer compatible inputs
- Differential and common mode rail-to-rail high-impedance inputs
- Fast settling time
No phase reversal
1nF heavy capacitive load drive capability
Wide -40°C to +125°C temperature range
Available in 8-lead standard small-outline package (SOIC_N)

Applications

Data acquisition systems
Multiplexed input signal chains
Industrial automation
Medical instruments

Electronic test and measurement
Precision current measurement
Photodiode amplifiers

Analog Devices Inc. ADA4511-2 Rail-to-Rail Input/Output Op Amps

Features

Applications

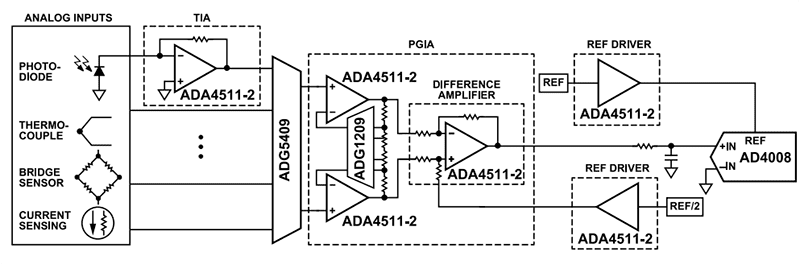

Typical Application Circuit

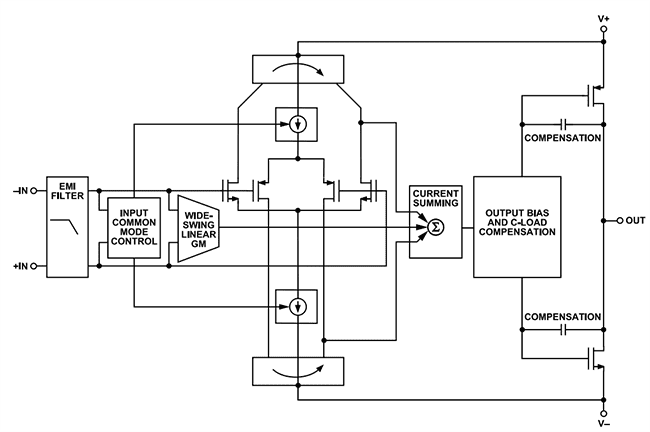

Schematic
