Analog Devices Inc. ADA4510-2 Input & Output Op Amps

Analog Devices Inc. ADA4510-2 Input and Output Op Amps are high-precision, dual-channel amplifiers with a 40V capability. The Analog Devices Inc. ADA4510-2 series is suitable for signal chain applications like sensing, conditioning, and output drives. Thanks to the DigiTrim™ technique, the amplifiers boast performance with minimal offset drift (±0.07μV/°C typical, ±0.5μV/°C maximum) and low offset voltage (±5μV typical, ±20μV maximum).

Features

±0.07μV/°C typical low offset voltage drift
±5μV typical, ±20μV maximum low offset voltage
1μV p-p from 0.1Hz to 10Hz typical low voltage noise
5nV/√Hz typical at f = 1kHz low voltage noise density
140dB typical high common-mode rejection
±10pA maximum low input bias current
10.4MHz typical wide gain-bandwidth product
19V/μs typical high slew rate
−134dB at f = 1kHz low THD
1.45mA per amplifier, typical low quiescent supply current
6V to 40V, ±3V to ±20V wide supply voltage operation

Integrated EMI filter
Multiplexer-compatible inputs
- Rail-to-rail high impedance inputs; differential and common mode
- Fast settling time
Rail-to-rail output
No phase reversal
1nF heavy capacitive load drive capability
-40°C to +125°C wide specified temperature range
8-lead standard small outline package (SOIC_N)

Applications

Electronic test and measurement
Data acquisition systems
Automated test equipment
Medical instruments

Multiplexed input signal chains
Precision current measurement
Photodiode amplifiers

Analog Devices Inc. ADA4510-2 Input & Output Op Amps

Features

Applications

Videos

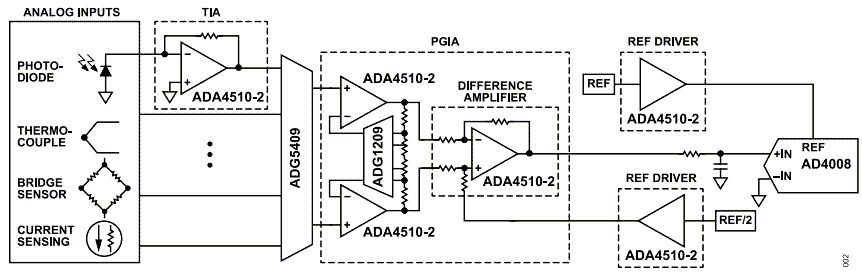

TYPICAL APPLICATION CIRCUIT
