Analog Devices Inc. AD8235 40μA Micropower Instrumentation Amplifier

Analog Devices Inc. AD8235 40μA Micropower Instrumentation Amplifier is available in a 1.5mm × 2.2mm wafer level chip scale package (WLCSP). The AD8235 draws a maximum quiescent current of 40μA. It also draws a maximum 500nA of current during shutdown mode. This makes it an excellent instrumentation amplifier for battery-powered, portable applications.

Features

Low power
- 40μA maximum supply current
- 6nA shutdown current
Low input currents
- 50pA input bias current
- 25pA input offset current
High Common Mode Rejection Ratio (CMRR)
- 110dB CMRR , G = 100

Space-saving
- WLCSP package
Zero input crossover distortion
Versatile
- Rail-to-rail input and output
- Shutdown
- Gain set with a single resistor (G = 5 to 200)
AD8236, μSOIC package version of AD8235

Applications

Medical instrumentation
Low-side current sense
Portable electronics

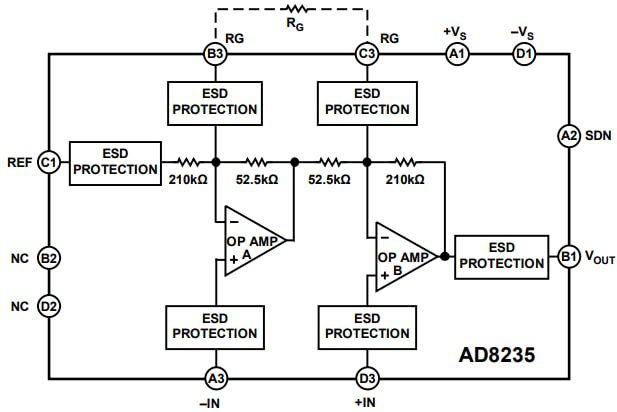

CONNECTION DIAGRAM

Block Diagram - Analog Devices Inc. AD8235 40μA Micropower Instrumentation Amplifier
