Analog Devices Inc. AD7389-4 16-Bit SAR Analog-to-Digital Converters

Analog Devices Inc. AD7389-4 16-Bit SAR Analog-to-Digital Converters is a simultaneous sampling ADC that operates from a 3.0V to 3.6V power supply. The AD7389-4 features throughput rates up to 2 MSPS. The analog input type is differential, accepts a wide common-mode input voltage, and the analog inputs are sampled and converted on the falling edge of CS.

Features

16-bit ADC family
Quad simultaneous sampling
Fully differential analog inputs
Wide common-mode range
High throughput rate 2 MSPS
Buffered 2.5V internal voltage reference (10 ppm/°C)
On-chip oversampling function
INL (maximum) 2 LSBs

SNR (typical)
- 90.5dB at V_REF = 2.5V
- 97.9dB at RES = 1, OSR = 8× rolling average oversampling
2-bit resolution boost
Out of range indicator (ALERT)
High-speed serial interface
−40°C to +125°C operation
4mm × 4mm, 24-lead LFCSP

Applications

Motor control position feedback
Motor control current sense
Data acquisition systems

Erbium-doped fiber amplifier (EDFA) applications
In phase and quadrature demodulation

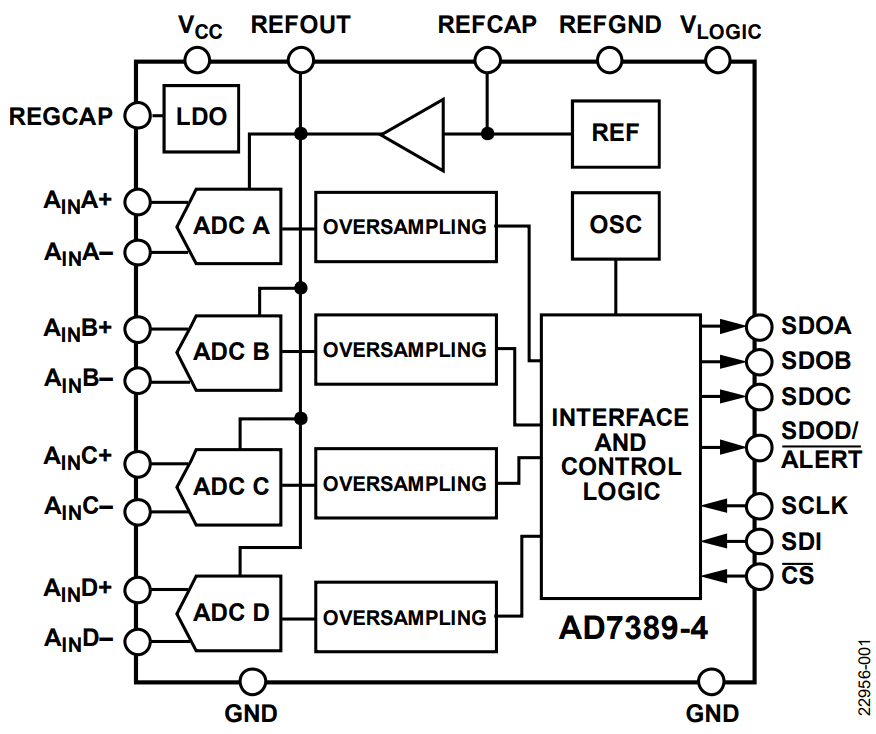

Block Diagram

Block Diagram - Analog Devices Inc. AD7389-4 16-Bit SAR Analog-to-Digital Converters
