Analog Devices Inc. AD3552R Digital-to-Analog Converters

Analog Devices Inc. AD3552R Digital-to-Analog Converters offer low drift, ultra-fast, 16-bit accuracy, and can be configured in multiple voltage span ranges. The AD3552R operates with a fixed 2.5V reference. The device incorporates three drift compensating feedback resistors for the required external trans-impedance amplifier (TIA) that scales the output voltage.

Features

16-bit resolution
33 MUPS single-channel rate in fast mode
22 MUPS single-channel rate in precision mode
65ns small signal settling time to 0.1% accuracy
100ns large-signal settling time to 0.1% accuracy
Ultra-small glitch < 50pV×s
Ultra-low latency 5ns

THD −105dB at 1kHz
Highly configurable output voltage span and offset
1.2V and 1.8V logic level compatible
Single (classic), dual, and quad SPI modes
Multiple error detectors, both analog and digital domains
2.5V internal voltage reference, 10 ppm/°C maximum temperature coefficient
5mm × 5mm LFCSP

Applications

Instrumentation
Hardware in the loop
Process control equipment
Medical devices

Automated test equipment
Data acquisition system
Programmable voltage sources
Optical communications

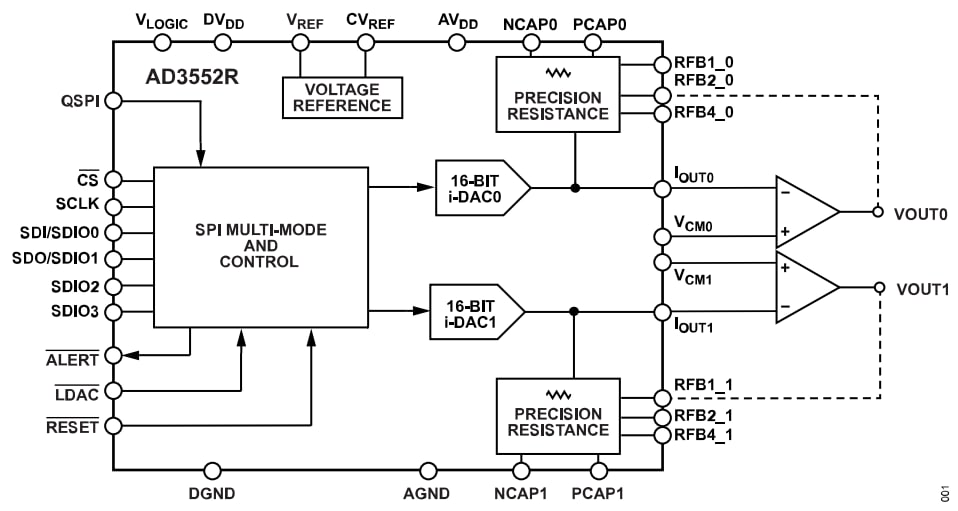

Block Diagram

Block Diagram - Analog Devices Inc. AD3552R Digital-to-Analog Converters
