ams OSRAM TSL2520 Ambient Light Sensor

ams OSRAM TSL2520 Ambient Light Sensor provides fast ALS sensing under any glass type. The TSL2520 is designed to fit in the gap between the display screen and the chassis of a smartphone. The accuracy and high sensitivity of this device, measuring ambient light levels down to just 1mlux, support responsive display brightness management and help improve camera image quality.

The TSL2520 features four photodiodes for visible light sensing and two infrared photodiodes, a combination that allows for the rejection of IR interference and produces very accurate measurements of ambient light intensity (lux).

The ams OSRAM TSL2520 Ambient Light Sensor is offered in a compact, low-profile 2.0mm x 1.0mm x 0.5mm optical QFN package ideal for space-constrained applications.

Features

Provides invisible ALS sensing under any glass type
Programmable gain and integration time
8192x dynamic range by gain adjustment only
1mlux detectable illuminance
UV/IR blocking filter for clear channel
ALS interrupt with thresholds
Flicker-immune ALS sensing with a programmable integration time
Configurable sleep mode

1.8V_DD operation
Configurable sleep mode
Interrupt-driven device
Digital and analog saturation flags
Low power consumption and minimum I²C traffic
Integrated status checking for all functions
2.0mm x 1.0mm x 0.5mm optical QFN package
RoHS compliant and Sb/Br/Cl free

Applications

Indoor/outdoor brightness information
Brightness management for displays
Camera image correction assistance

ams OSRAM TSL2520 Ambient Light Sensor

Features

Applications

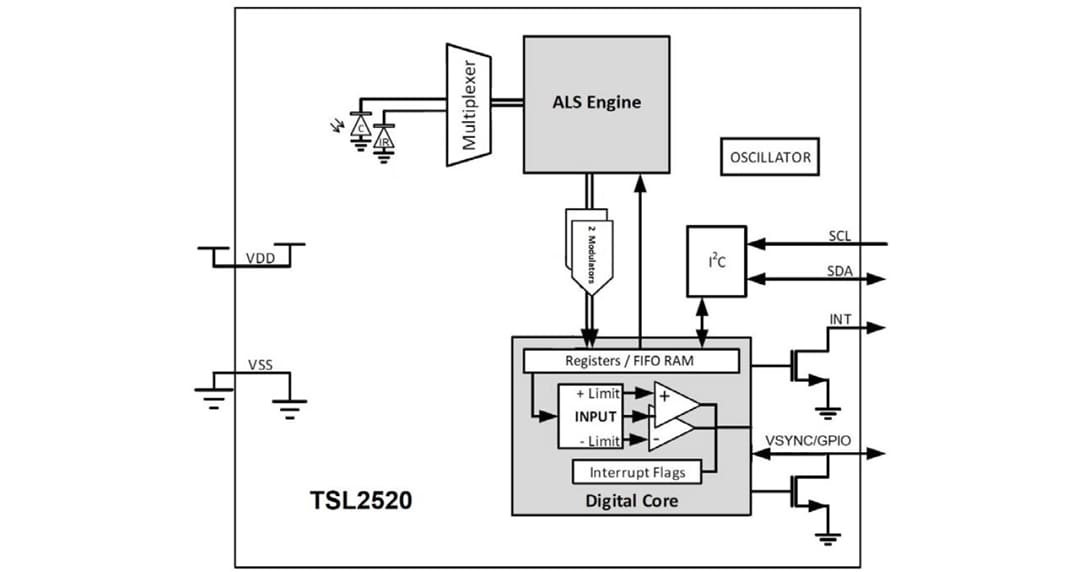

Block Diagram
