ams OSRAM TOPLED® SFH 2201 A01 Photodiode

ams OSRAM TOPLED® SFH 2201 A01 Photodiode offers enhanced blue sensitivity in a clear silicone package. The SFH 2201 A01 photodiode is AEC-Q102 qualified with a solder control structure and small outline dimensions. The SFH 2201 A01 is ideal for applications from 300nm to 1100nm.

Features

Clear silicone package
ESD: 2kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 2)
Especially suitable for applications from 300nm to 1100nm

AEC-Q102 Qualified
Small outline dimensions
Solder control structure
Suitable for reflow soldering

Applications

In-cabin sensing
Rain, light and tunnel sensing

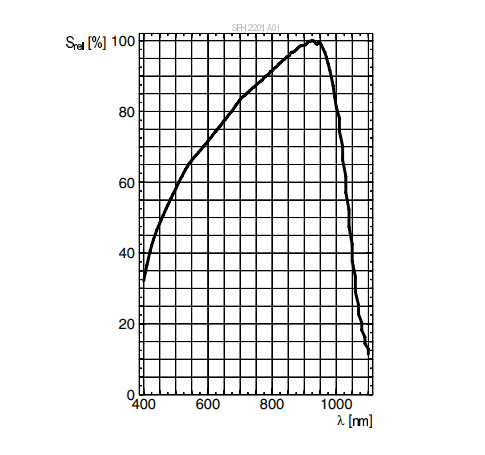

Relative Spectral Sensitivity

Performance Graph - ams OSRAM TOPLED® SFH 2201 A01 Photodiode
