ams OSRAM SFH27x3 PIN Photodiodes

ams OSRAM SFH27x3 PIN Photodiodes feature small outline dimensions and are suitable for reflow soldering. These photodiodes come in a clear epoxy package. ams OSRAM SFH27x3 PIN Photodiodes operate in a -40°C to +85°C temperature range and 16V reverse voltage. The series is suitable for health monitoring applications such as heart rate monitoring and pulse oximetry.

SFH2703

SFH2703 is a CHIPLED^® Broadband Silicon PIN photodiode that offers 2kV maximum ESD withstand voltage. The SFH2703 provides a 940nm wavelength of maximum sensitivity, 0.95V forward voltage, and 9pF capacitance.

SFH2713

SFH2713 is a CHIPLED IR-cut silicon PIN photodiode that features a 1.5kV maximum ESD withstand voltage. The SFH2713 offers a 635nm wavelength of maximum sensitivity, 0.90V forward voltage, and 50pF capacitance.

Features

SFH2703: Broadband silicon PIN photodiode
SFH2713: IR-cut silicon PIN photodiode
Suitable for reflow soldering

Small outline dimensions
Clear epoxy package

Specifications

-40°C to +85°C operating and storage temperature range
16V reverse voltage
SFH2703
- 940nm wavelength of maximum sensitivity
- 0.95V forward voltage
- 9pF capacitance
- 2kV maximum ESD withstand voltage

SFH2713
- 635nm wavelength of maximum sensitivity
- 0.90V forward voltage
- 50pF capacitance
- 1.5kV maximum ESD withstand voltage

Applications

Health monitoring
- Heart rate monitoring
- Pulse oximetry

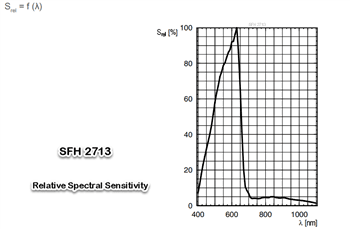

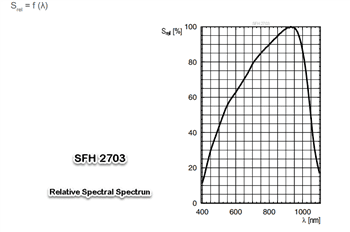

Performance Graphs

Performance Graph - ams OSRAM SFH27x3 PIN Photodiodes
