ams OSRAM OSLON® Compact PL KW2 CFLNM3.TK High-Power LED

ams OSRAM OSLON^® Compact PL KW2 CFLNM3.TK High-Power LED incorporates a compact light source with an isolated thermal pad for improved heat-dissipation and small z-tolerance (±35µm). This high-power LED exhibits UX:3 chip technology and white color with Cx = 0.325, Cy = 0.345 (according to CIE 1931). The KW2 CFLNM3.TK LED offers 120° typical radiation (Lambertian emitter), AEC-Q102 qualification, and 3A corrosion robustness class. The OSLON Compact PL product family meets both excellent brightness in combination with outstanding luminance. This LED is ideal for use in forward lighting, daytime running light, standard low and high beams, and adaptive driving beams.

Features

High luminance in combination with high flux performance
UX:3 chip technology
120° typical radiation (Lambertian emitter)
Color:
- Cx = 0.325, Cy = 0.345 according to CIE 1931 (white)
3A corrosion robustness class
±35µm z-tolerance

Ceramic package
AEC-Q102 qualified
ESD:
- 8kV according to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Color over angle:
- Better than passus 3.7.2.1 of supplement proposal 7 to ECE reg. 128

Applications

Forward lighting (dynamic/static)
Daytime running light

Standard low and high beam
Adaptive driving beam

Performance Graphs

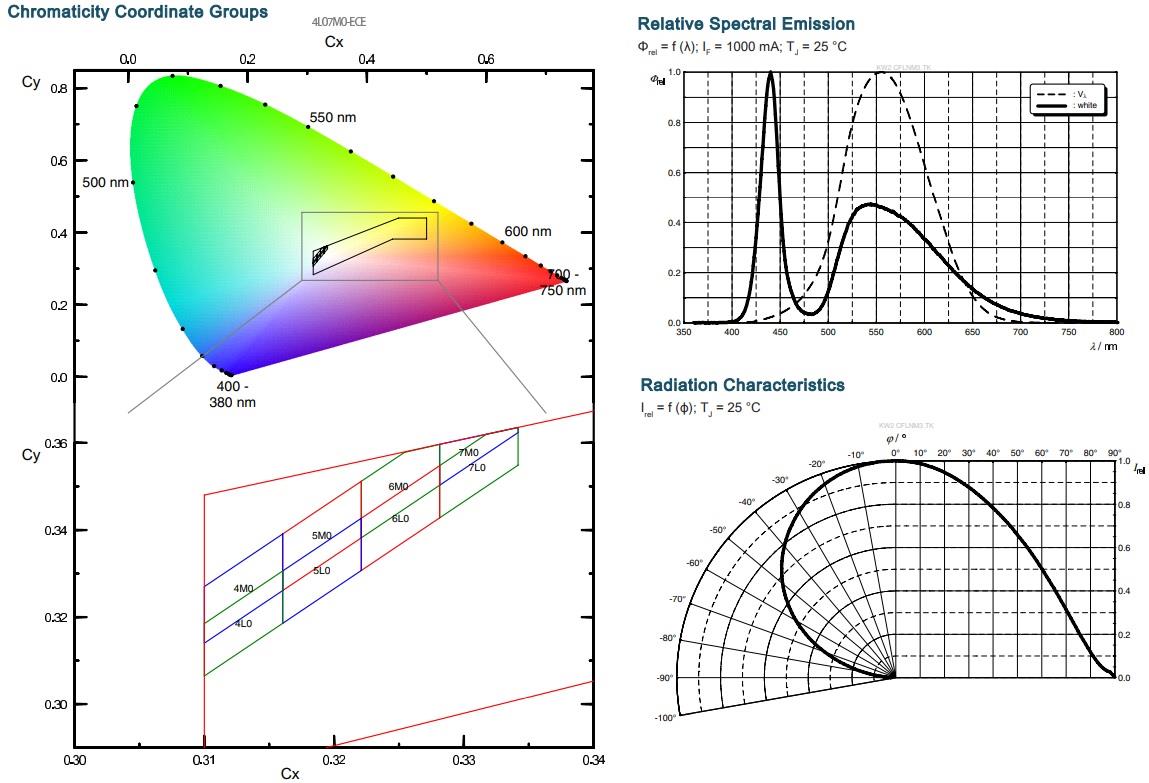

Performance Graph - ams OSRAM OSLON® Compact PL KW2 CFLNM3.TK High-Power LED

Dimensional Drawing (mm)

Mechanical Drawing - ams OSRAM OSLON® Compact PL KW2 CFLNM3.TK High-Power LED

Resources

OSLON^® Compact Family
