ams OSRAM OSLON® Compact PL KW CELNM3.TK High-Power LED

ams OSRAM OSLON^® Compact PL KW CELNM3.TK High-Power LED combines excellent brightness with outstanding luminance. This LED incorporates a compact light source with an isolated thermal pad for improved heat dissipation and small z-tolerance (±35µm). The KW CELNM3.TK LED exhibits UX:3 chip technology and white color with Cx = 0.316, Cy = 0.330 (according to CIE 1931). This OSLON Compact PL LED offers 120° typical radiation (Lambertian emitter), AEC-Q102 qualification, and 3A corrosion robustness class. The KW CELNM3.TK high-power LED is ideal for applications such as forward lighting (dynamic/static), daytime running light, standard low and high beams, and adaptive driving beams.

Features

High luminance in combination with high flux performance
UX:3 chip technology
120° typical radiation (Lambertian emitter)
Color:
- Cx = 0.316, Cy = 0.330 according to CIE 1931 (white)
3A corrosion robustness class
±35µm z-tolerance

Ceramic package
AEC-Q102 qualified
ESD:
- 8kV according to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Color over angle:
- Better than passus 3.7.2.1 of supplement proposal 7 to ECE reg. 128

Applications

Forward lighting (dynamic/static)
Standard low and high beam

Adaptive driving beam
Daytime running light

Performance Graphs

Performance Graph - ams OSRAM OSLON® Compact PL KW CELNM3.TK High-Power LED

Dimensional Drawing (mm)

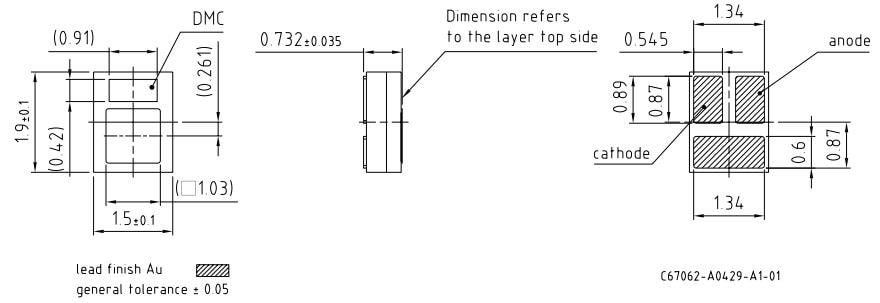

Mechanical Drawing - ams OSRAM OSLON® Compact PL KW CELNM3.TK High-Power LED

Resources

OSLON^® Compact Family
