ams OSRAM OSLON® Boost HM KW CELMM2.TK LEDs

ams OSRAM OSLON^® Boost HM KW CELMM2.TK LEDs employ the high current capability of the recent chip generation in a special package for good thermal behaviour. These Gen2 LEDs incorporate high luminance of up to 275cd/mm² and a high luminous flux in order to suit powerful light sources for ultra-slim headlamp designs. The KW CELMM2.TK LEDs offer a single-color binning and 3-pad design with electrically isolated thermal pads to achieve superior thermal management. The OSLON^® Boost HM shares the same footprint as the OSLON^® Compact PL. This helps to reduce system costs by using the same PCB layouts for different applications. These AEC-Q102-qualified LEDs are suitable for dynamic forward lighting, static forward lighting, slim headlamp designs, and high beam spots.

Features

High-luminance capability
Superior thermal management:
- 3-pad design with electrically isolated thermal pad
New FWL single-color binning:
- Allows to order just one single color bin as a standard selection

AEC-Q102 qualified
SMD ceramic-based package:
- Compact outline dimensions of 1.9mm x 1.5mm x 0.73mm
- Same as Compact PL – reduce system costs by using a same PCB layout

Specifications

UX:3 chip technology
120° typical radiation (Lambertian emitter)
Color:
- Cx = 0.3104
- Cy = 0.3162
- According to CIE 1931 (white)

3A corrosion robustness class
8kV ESD withstand voltage according to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
-40°C to 135°C operating/storage temperature range

Applications

Dynamic forward lighting
Static forward lighting
Light vehicles
Medium/heavy vehicles

2-Wheelers
Realization of slim headlamp designs
Usage of small optical lens component
High beam spots

ams OSRAM OSLON® Boost HM KW CELMM2.TK LEDs

Features

Specifications

Applications

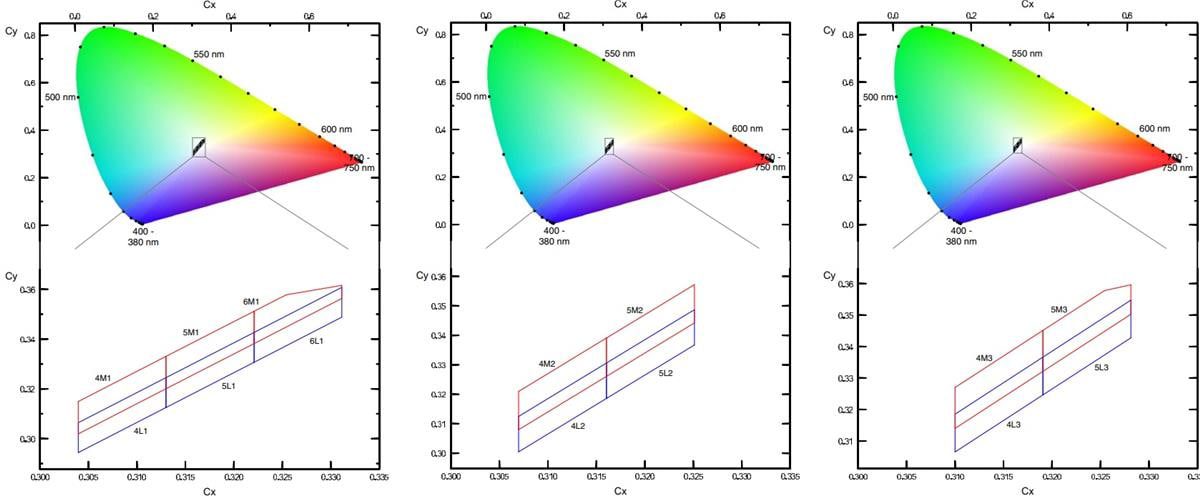

Chromaticity Coordinate Groups

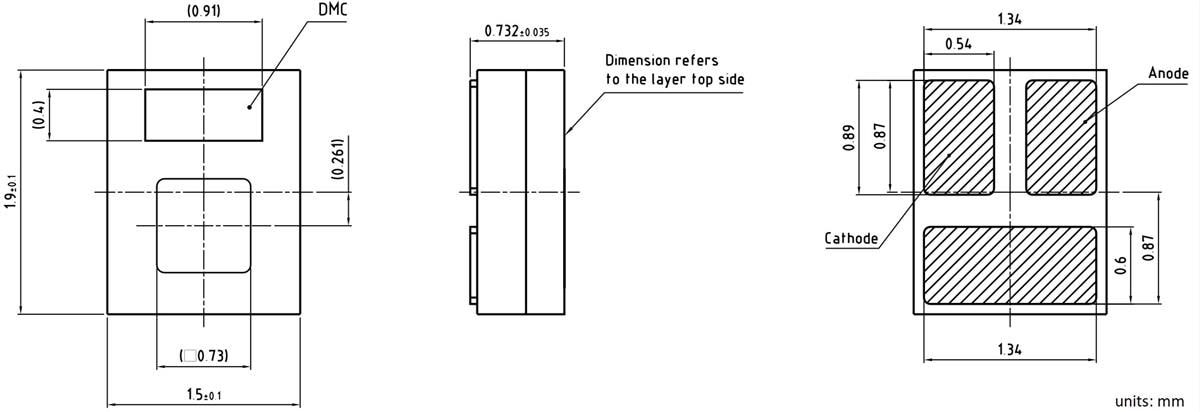

Dimensions
