ams OSRAM OSCONIQ® S 5050 GW Q9LR34.EM LEDs

ams OSRAM OSCONIQ® S 5050 GW Q9LR34.EM LEDs offer high efficacy performance combined with DLC Premium Lifetime in a QFN package. The GW Q9LR34.EM LEDs are housed in a lead frame package. The package allows robust stability with superior corrosion protection, further enhancing the suitability for professional outdoor lighting.

Features

White SMT package, colored diffused silicone resin package
Typical radiation of 120° (Lambertian emitter)
Color temperature of 2200K to 6500K
CRI of 80 (minimum), 82 (typ.), R9: -7 (minimum)

ESD of 8kV acc. to ANSI/ESDA/JEDEC JS-001 (HBM, Class 3B)
Luminous flux of 203lm typical at 4000K
Luminous efficacy of 204lm/W typical at 4000K

Applications

Agriculture and horticulture
Entertainment

Indoor lighting
Outdoor and industrial lighting

Specifications

-40°C to +105°C operating temperature
10mA to 265mA forward current

1200mA surge current
Not designed for reverse operation

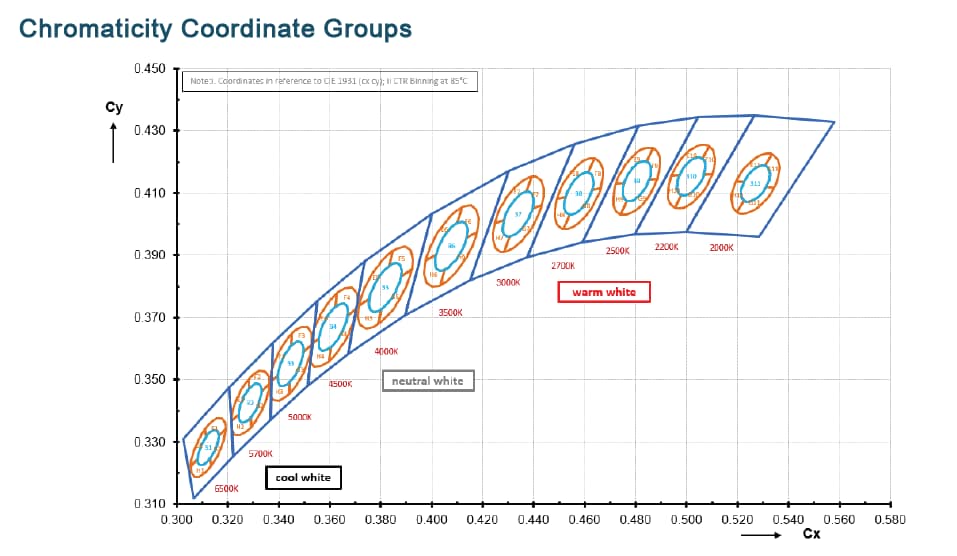

Chromaticity Coordinate Groups

Performance Graph - ams OSRAM OSCONIQ® S 5050 GW Q9LR34.EM LEDs
