ams OSRAM Metal Can® TO56 PLT5 522FA_P Green Laser Diode

ams OSRAM Metal Can® TO56 PLT5 522FA_P Green Laser Diode is optimized for life-science applications and point-of-care instruments. The PLT5 522FA_P features a 514nm (±1nm) typical emission wavelength and a 50mW optical output power. This device provides a highly efficient radiation source for continuous wave and pulsed operation. The PLT5 522FA_P is an ideal alternative to expensive argon-ion laser devices.

The ams OSRAM PLT5 522FA_P Green Laser Diode features thermally stabilized optics in a hermetically-sealed, 5.6mm diameter TO-56 Metal Can® package, ensuring reliable and maintenance-free operation.

Notice: Depending on the mode of operation, the PLT5 522FA_P Green Laser Diode emits highly-concentrated visible and non-visible light, which can be hazardous to the human eye. Products that incorporate this device have to follow the safety precautions given in IEC 60825-1.

Features

Low-cost alternative to expensive argon-ion lasers
Tailored for life-science applications
Suitable for point-of-care instruments
Compact size enables high-density designs
Single mode semiconductor laser
Efficient radiation source for continuous wave and pulsed operation

Excellent beam pointing accuracy
Good signal/noise ratio, optimized wavelength
No yield or distribution analyses needed
Optimized optical performance, high quality
Rugged Metal Can case for a long lifetime and lower cost

Applications

Flow cytometry
Confocal microscopy
Spectroscopy
Material identification and analysis

Real-time quality control
Diagnostics for viruses
DNA sequencing
Forensic analysis

Specifications

514nm typical emission wavelength
Narrow ±1nm tolerance
50mW optical output power (continuous wave) @ T_C = 25°C
200mA forward current
115mA typical operating current; 140mA maximum operating current
90µA typical monitor current
6V typical operating voltage

2V reverse voltage
100MHz modulation frequency
8° typical beam divergence (FWHM) parallel to pn-junction
22° typical beam divergence (FWHM) perpendicular to pn-junction
-20°C to +60°C operating temperature range
5.6mm diameter TO-56 Metal Can package

ams OSRAM Metal Can® TO56 PLT5 522FA_P Green Laser Diode

Features

Applications

Specifications

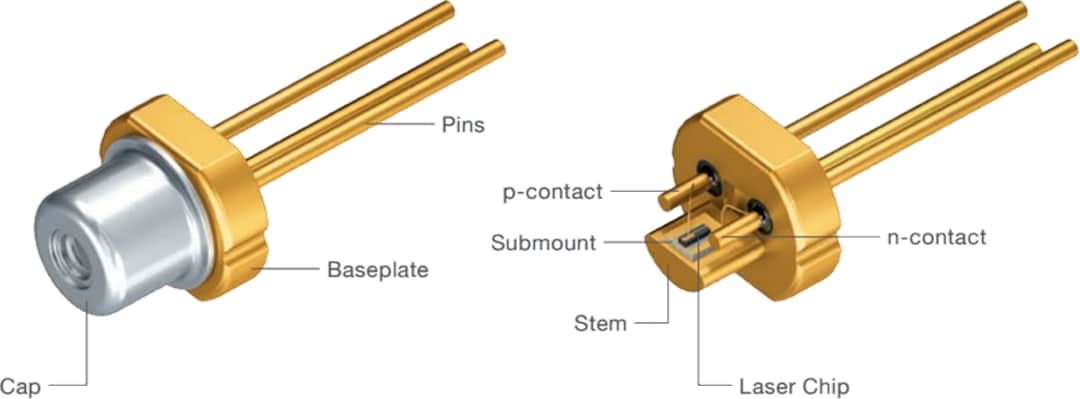

TO-56 Package Overview

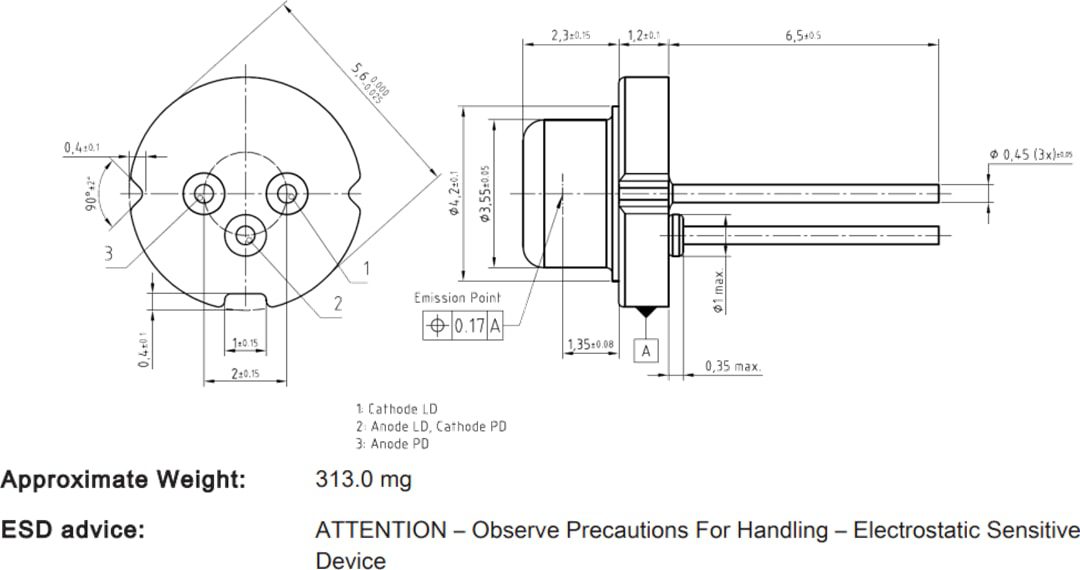

Mechanical Drawing
