ams OSRAM Metal Can® PLT3 Blue Laser Diode

ams OSRAM Metal Can^® PLT3 Blue Laser Diode is a single-mode semiconductor laser in a TO38 ICut package. This laser diode offers better beam quality, high modulation bandwidth, and tighter electro-optical tolerances. The PLT3 laser diode features a 450nm typical emission wavelength, 100mW typical peak output power, and 2V reverse voltage (T_case at 25°C). This laser diode is an efficient radiation source for Continuous Wave (CW) and pulsed operation. The PLT3 laser diode operates within the -20°C to 70°C temperature range. Typical applications include appliances and tools, entertainment, functional illumination, medical imaging, projection, visualization, and outdoor and industrial lighting.

Features

Efficient radiation source for Continuous Wave (CW) and pulsed operation
Single-mode semiconductor laser
High modulation bandwidth

Miniaturized TO38 ICut package
Laser diode isolated against the package

Specifications

Operating current:
- 87mA typical
- 120mA maximum
Forward voltage:
- 5.2V typical
- 6.5V maximum
Threshold current:
- 12mA typical
- 30mA maximum

450nm typical emission wavelength
-20°C to 70°C operating temperature range
-40°C to 85°C storage temperature range
141mg approximate weight
100mW typical peak output power
2V maximum reverse voltage (T_case at 25°C)

Applications

Appliances and tools
Entertainment
Functional illumination
Medical imaging

Outdoor and industrial lighting
Projection
Visualization

ams OSRAM Metal Can® PLT3 Blue Laser Diode

Features

Specifications

Applications

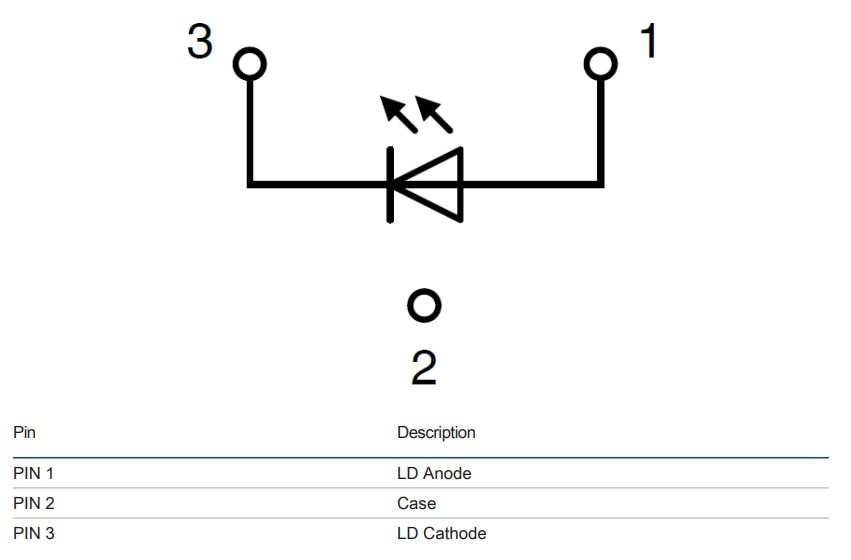

Electrical Internal Circuit
