ams OSRAM LZ1-10UBN0 LED ENGIN LuxiGen

ams OSRAM LZ1-10UBN0 LED ENGIN LuxiGen has a thermal resistance of 1.5K/W and an MCPCB diameter of 19.9mm. The ams OSRAM LED is housed in a ceramic package with an integrated glass lens. The device features UX:3 chip technology and has a typical radiation of 60° and up to a 2W of radiant flux output. These LEDs can be used in many applications, including electronic equipment, illumination, gaming, amusement, and horticulture lighting.

Features

Thermal Resistance 1.5K/W (only MCPCB without emitter)
Diameter of MCPCB is 19.9mm
Ceramic package with integrated glass lens

Chip technology UX:3
Typ. Radiation 60°
Up to 2W of radiant flux output

Applications

Electronic equipment
Equipment illumination (e.g. curing, endoscope)
Gaming, amusement, gambling
Horticulture lighting
Industrial automation (machine controls, light

Barriers, vision controls)
Photo therapy
Smoke/dust/particle sensing
Stage lighting (LED and laser)

ams OSRAM LZ1-10UBN0 LED ENGIN LuxiGen

Features

Applications

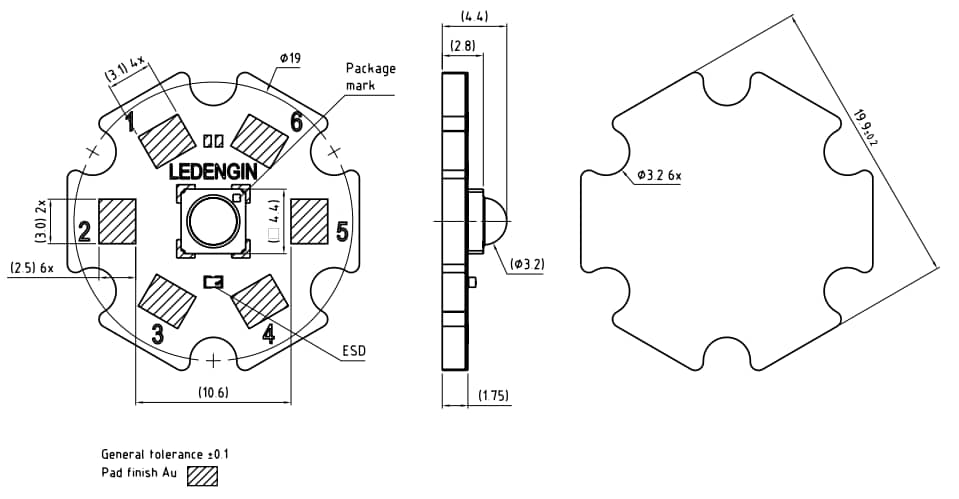

Dimensional Drawing

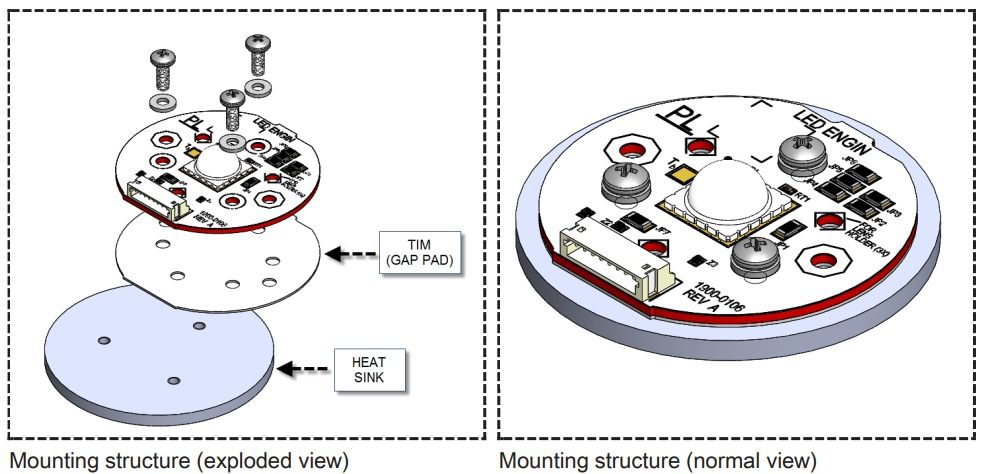

MCPCB Assembly Recommendations
