ams OSRAM LED ENGIN LuxiGen® UVA Gen 5

ams OSRAM LED ENGIN LuxiGen® UVA Gen 5 are high-power UVA LEDs (365nm + Violet 385nm, 395nm, 410nm) designed for industrial UV curing. The devices optimize light extraction for higher efficiency, making them robust for industrial applications. The ams OSRAM UVA LEDs feature a very high optical output from small, compact packages, allowing a smaller heatsink and reducing the fixture form factor.

Features

Ceramic package with integrated glass lens
Option for one and multiple die in a single package

Narrow 5nm wavelength binning
Very low thermal resistance

Applications

Industrial UV curing (paint, ink, adhesive, resin, others)
Entertainment (blacklight)
Counterfeit detection

Specifications

365nm + Violet 385nm, 395nm, 405nm

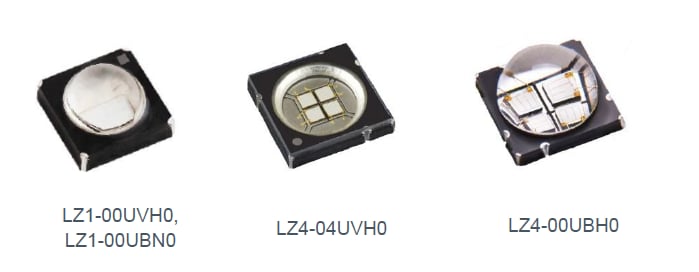

LZ1 (1-die) and LZ4 (4-die) packages
3% to 9% higher efficiency

Lower thermal resistance
15°C to 30°C higher operating temperature
L2 star board options for ease of evaluation
