ams OSRAM LED ENGIN LuxiGen® LZ4-04UVH0 LED

ams OSRAM LED ENGIN LuxiGen® LZ4-04UVH0 LED provides a robust high-power ceramic package with an integrated glass window. The LZ4-04UVH0 offers 367nm λpeak with 120° typical radiation and implements UX:3 chip technology. The ams OSRAM LZ4-04UVH0 LED is designed for many applications, including entertainment, material processing, and medical lighting.

Features

Ceramic package with integrated glass window
UX:3 Chip technology

120° typical radiation
Color at λpeak = 367nm [ultraviolet (UV-A)]

Applications

Agriculture and horticulture
Appliances and tools
Entertainment

Material processing
Medical lighting

Specifications

3.8W to 6W total radiant flux
-30°C to +100°C operating temperature
-40°C to +125°C storage temperature

900mA forward current
ESD sensitive device
Not designed for reverse operation

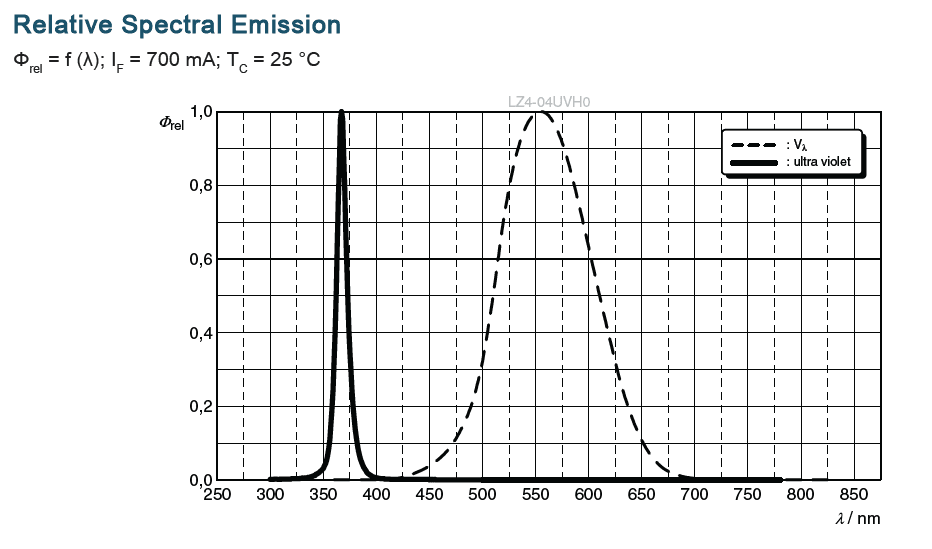

Performance Graph - ams OSRAM LED ENGIN LuxiGen® LZ4-04UVH0 LED

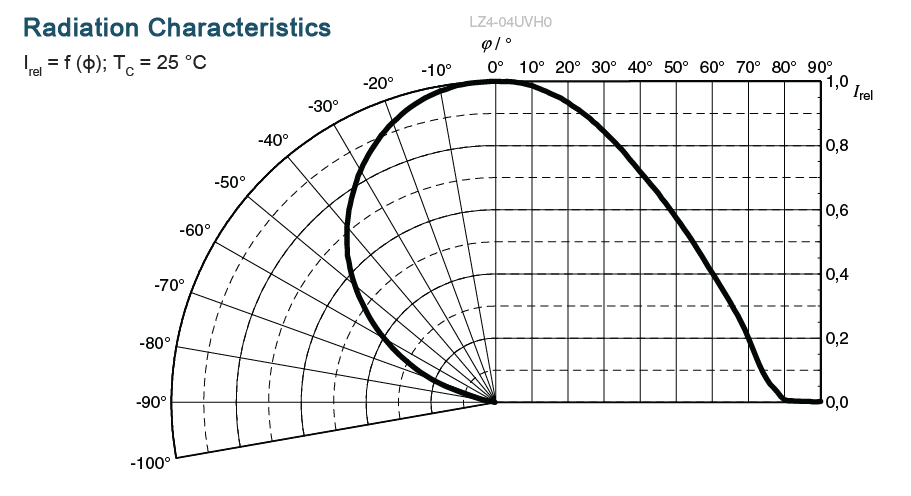

Performance Graph - ams OSRAM LED ENGIN LuxiGen® LZ4-04UVH0 LED
