ams OSRAM LED ENGIN LuxiGen® LZ4-01MNCA/MWCA High Power LEDs

ams OSRAM LED ENGIN LuxiGen^® LZ4-01MNCA/MWCA High Power LEDs are multi-color thin-film LEDs with silicone flat top for high performance over life. These LEDs feature 85 typical Color Rendering Index (CRI) and 120° typical radiation. The LZ4-01MNCA/MWCA LEDs are 40W devices capable of driving up to 3A input current. These LEDs produce a wide range of colors, including the standard Red, Green, Blue, and White (RGBW), helping to create vibrant and diverse lighting effects. The LZ4-01MNCA/MWCA LEDs operate within the -40°C to 125°C temperature range and are RoHS compliant. Typical applications include entertainment and outdoor and industrial lighting.

Features

Multi-color
Thin-film
Silicone flat top for high performance over life
85 typical Color Rendering Index (CRI)

120° typical radiation
-40°C to 125°C operating temperature range
125°C maximum junction temperature
RoHS compliant

Specifications

LZ4-01MNCA:
- Color:
  - λ_dom = 623nm (red)
  - λ_dom = 520nm (true green)
  - λ_dom = 451nm (blue)
  - Cx = 0.38, Cy = 0.38 acc. to CIE 1931 (neutral white)

LZ4-01MWCA:
- Color:
  - λ_dom = 623nm (red)
  - λ_dom = 520nm (true green)
  - λ_dom = 451nm (blue)
  - Cx = 0.435, Cy = 0.405 acc. to CIE 1931 (warm white)

Applications

Entertainment
Outdoor and industrial lighting

ams OSRAM LED ENGIN LuxiGen® LZ4-01MNCA/MWCA High Power LEDs

Features

Specifications

Applications

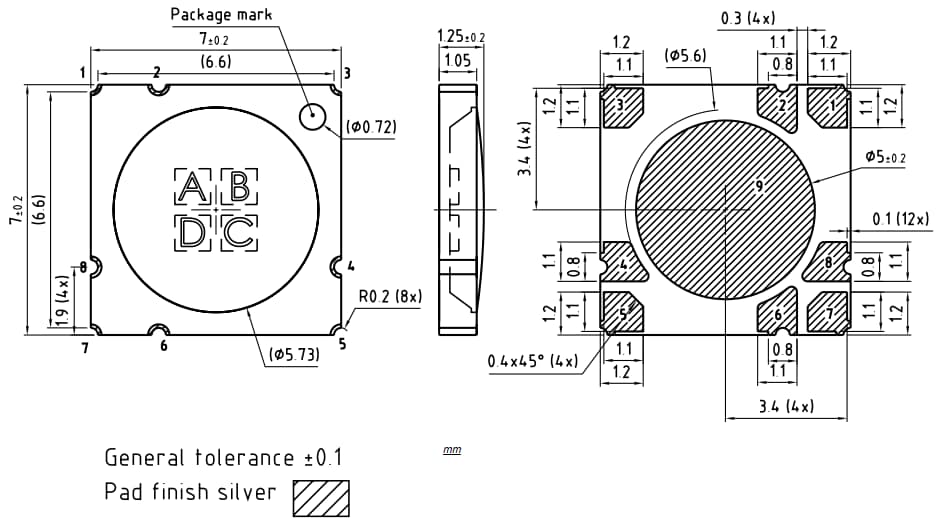

Dimensional Drawing
